Package: Invicti AppSec Core (on-demand), Invicti AppSec Enterprise (on-premise, on-demand)
Invicti Platform DAST/API Integration
Invicti Platform is an enterprise-grade dynamic application security testing (DAST) solution. This integration allows Invicti AppSec to trigger scans, retrieve results, and track vulnerabilities directly from the Invicti Platform scanner.
Prerequisites
| Field | Description |
|---|---|
| Invicti Platform URL | The base URL of your Invicti Platform instance (e.g., https://your-org.invicti.com) |
| API Token | A personal API token generated from your Invicti Platform account |
Get an API Token (on Invicti Platform Side)
- Log in to your Invicti Platform instance.
- Click your profile icon in the upper right corner.
- Select API Settings or My Account.
- Navigate to the API Token section.
- Click Generate Token.
- Copy the token immediately — it is shown only once.
Step 1: Navigate to Integrations
From the left sidebar menu, click on Integrations.
Step 2: Select the DAST/API Tab
On the Integrations > Scanners page, click on the DAST/API tab.
Step 3: Find and Activate Invicti Platform
Scroll through the list of DAST/API scanners to find Invicti Platform.
- If Invicti Platform is not activated, you will see an "Activate" button. Click it to enable the integration.
The scan method badge on the Invicti Platform card shows KDT, which means scans are triggered through the Kondukto CLI tool (KDT).
Step 4: Configure Connection Settings

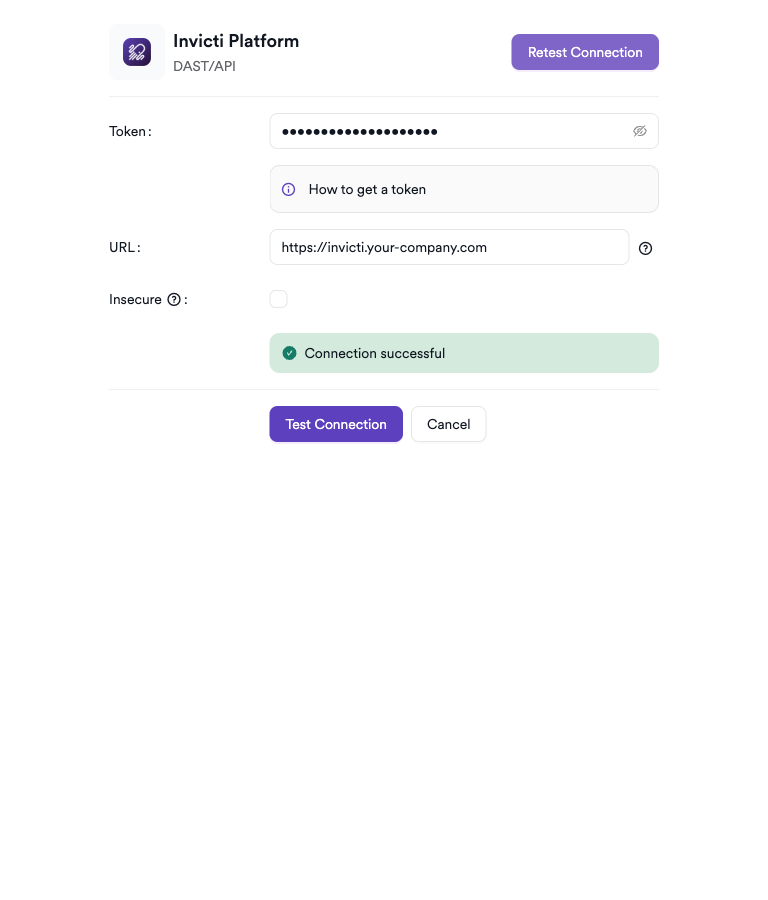

Click on the gear icon on the Invicti Platform card to open the configuration panel. Fill in the required fields:
- Token: Paste the API token generated from your Invicti Platform account.
- URL: Enter your Invicti Platform base URL (default:
https://platform.invicti.com). - Insecure: Enable this checkbox only if your Invicti Platform instance uses a self-signed SSL certificate.
Step 5: Test the Connection
Click Test Connection. A green Connection successful message confirms that Invicti AppSec can communicate with your Invicti Platform instance.
Summary
| Step | Action |
|---|---|
| 1 | Navigate to Integrations from the sidebar |
| 2 | Select the DAST/API tab |
| 3 | Activate the Invicti Platform scanner |
| 4 | Enter URL and API Token |
| 5 | Test the connection |
Create a Scan
Navigate to Project Scanners
- Open a project in Invicti AppSec.
- Go to Settings > Scanners.
- Click Add Scanner.
Add Invicti Platform Scanner
- Select DAST/API as the scanner type.
- Choose Invicti Platform from the scanner list.
- Click Add to open the scan configuration drawer.
Scan Configuration Fields
| Field | Description | Required |
|---|---|---|
| Environment | Select the environment for the scan | No |
| Bind To | Invicti Platform project to bind to | Yes |
| Profiles | Scan profile to use | No |
| Start Scan | Toggle to trigger the scan immediately | No |
| Branch | Source code branch associated with this scan | No |
| Meta Data | Additional metadata for the scan | No |
| Scan Tag | Tag to identify the scan | No |
Scheduler
Enable the Scheduler toggle to run this scan on a recurring schedule. Configure the frequency (daily, weekly) and time.
Webhook (Optional)
Add a webhook URL to receive scan status notifications when the scan completes or fails.
KDT Command
To trigger scans from a CI/CD pipeline using the KDT CLI:
kdt scan -p <project_name> -t invicti -b <branch_name>
Troubleshooting
Connection Fails
| Issue | Resolution |
|---|---|
| Invalid API token | Regenerate the token from Invicti Platform and update the settings |
| Wrong URL | Ensure the URL includes the protocol (https://) and no trailing slash |
| SSL certificate error | Verify the Invicti Platform instance uses a valid SSL certificate |
| Network/firewall | Ensure Invicti AppSec can reach the Invicti Platform host on port 443 |
Scan Issues
| Issue | Resolution |
|---|---|
| No scan profiles available | Verify the API token has sufficient permissions to list scan profiles |
| Scan not starting | Check that the target URL is reachable from the Invicti Platform agent |
| Empty results | Confirm the scan completed successfully in the Invicti Platform dashboard |
| Permission denied | Ensure the service account has the required role in Invicti Platform |
Best Practices
- Use a dedicated service account API token rather than a personal user token.
- Rotate the API token every 90 days.
- Always use HTTPS for the Invicti Platform URL.
- Assign the minimum required permissions to the service account.
- Use scan profiles optimized for your application type (web app vs. API).
Limitations
- The integration requires Invicti Platform API access; firewall rules must allow outbound connections from Invicti AppSec.
- Scan profile availability depends on your Invicti Platform subscription tier.
- Rate limits imposed by Invicti Platform's API may affect scan triggering frequency in high-volume environments.
- Only scan results from completed scans are imported; in-progress scan data is not retrieved until the scan finishes.
