NTA with Kong API Gateway in Docker

This document is for Invicti Platform

This feature is available with Invicti API Security Standalone or Bundle.

The Docker installation method is perfect for testing or running the Kong API Gateway in isolated environments. It offers a fast and flexible setup, allowing you to easily deploy and manage Kong and the plugin within separate containers. This makes it an ideal solution for development and small-scale production environments, where NTA runs in its own Docker container alongside Kong Gateway, which also runs in a separate container.

🔧 Support requirement

The support team provides the Docker images upon request.

This document navigates you through the configuration process of Kong into your development environment.

Prerequisites​

  • Kong API Gateway: Ensure Kong API Gateway v 3.0 or newer is installed and configured.
  • Docker: Have Docker installed and running.

Step 1: Download nta.zip and copy the plugin​

  1. Download the nta file and extract its contents. Copy the executable in the file.

  2. To add the plugin to your environment, copy it into the Docker container using the following command:

docker cp ./nta kong-gateway:nta
🔧 Container identification

Replace kong-gateway with the actual container name or container ID used in your Docker setup.

  • To locate the container ID navigate to your container and use the copy button to copy the ID.
Container ID with the the copy button selected

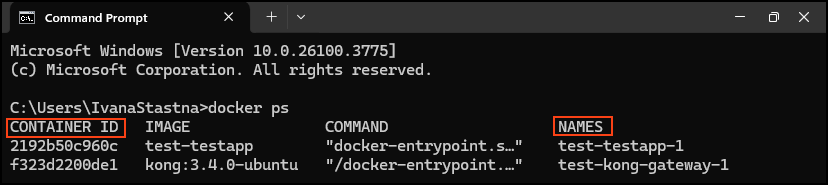

  • To find the container name and ID in the terminal, run docker ps.
The Terminal showing the container name and ID

  1. The terminal confirms that the operation was successful. You can also verify this in Docker Desktop under Containers > Files.

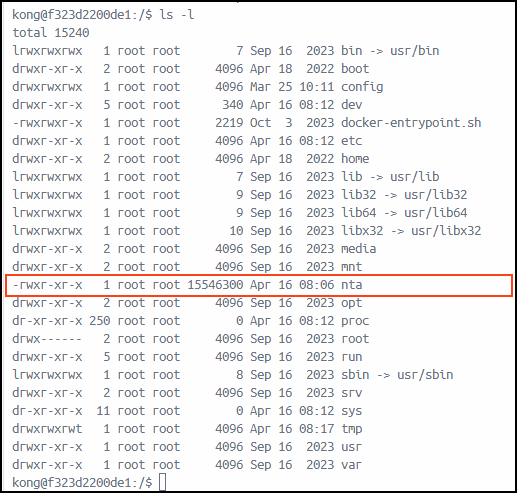

    • In Container > Exec, run bash followed by ls -l, to display the nta executable in the root directory.
Docker Desktop container exec terminal showing nta executable verification with ls -l command

Step 2: Set environment variables​

After copying the plugin to the Kong container, set the required environment variables to enable it by navigating to Containers > Exec in Docker Desktop and pasting the following commands one by one.

  1. It is recommended to run bash, first.
export KONG_PLUGINS="bundled,nta"
export KONG_PLUGINSERVER_NAMES="nta"
export KONG_PLUGINSERVER_NTA_START_CMD="/nta"
export KONG_PLUGINSERVER_NTA_QUERY_CMD="/nta -dump"

  1. For the first command—export KONG_PLUGINS="bundled,nta"—be sure to include all your existing plugins in the list. Since the current plugins you have are unknown, you need to modify the command to include them all, separated by commas, and then add nta to the list.

  2. The remaining commands are to be used as they are.

Step 3: Restart kong​

To apply the changes, restart Kong using one of the following commands:

kong reload

or

kong restart
