Package: Invicti AppSec Enterprise (on-premise, on-demand)

Red Hat Advanced Cluster Security

Red Hat Advanced Cluster Security (RHACS) for Kubernetes provides container image vulnerability scanning and Kubernetes security posture management. In Invicti AppSec, the integration connects to your RHACS instance to import container image vulnerability findings.

Prerequisites

Field	Description
Authentication Type	Choose between Basic (Username + Password) or Token authentication
Username	RHACS username (Basic auth only)
Password	RHACS password (Basic auth only)
Token	API token for RHACS (Token auth only)
URL	The base URL of your RHACS instance (e.g., https://central.rhacs.example.com)

Get Credentials (on RHACS Side)

For Basic Authentication:

1. Use your existing RHACS username and password.

For Token Authentication:

1. Log in to the RHACS Central UI.
2. Navigate to Platform Configuration > Integrations > Authentication Tokens.
3. Click Generate Token.
4. Select the appropriate role (e.g., Analyst for read-only access).
5. Copy the generated token immediately — it is shown only once.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

Step 2: Select the CS Tab

On the Integrations > Scanners page, click on the CS tab.

Step 3: Find and Activate Red Hat Advanced Cluster Security

Scroll through the list of CS scanners to find Red Hat Advanced Cluster Security.

• If RHACS is not activated, click the Activate button to enable the integration.

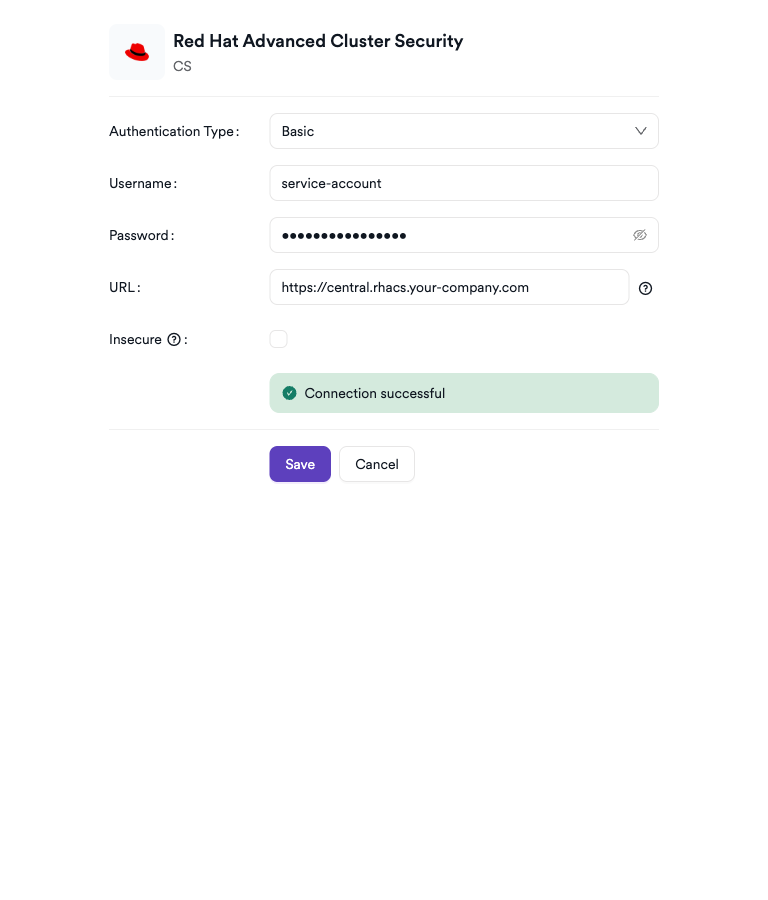

Step 4: Configure Connection Settings

Click the gear icon on the RHACS card to open the settings panel. Fill in the required fields:

Field	Description	Required
Authentication Type	Select Basic (Username + Password) or Token	Yes
Username	RHACS username (shown when Basic is selected)	Yes (Basic only)
Password	RHACS password (shown when Basic is selected)	Yes (Basic only)
Token	RHACS API token (shown when Token is selected)	Yes (Token only)
URL	Base URL of your RHACS Central instance	Yes
Insecure	Skip TLS certificate verification (use only for self-signed certificates)	No

Step 5: Test the Connection

Click Test Connection. A green Connection successful message confirms that Invicti AppSec can authenticate with the RHACS API.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the CS tab
3	Activate Red Hat Advanced Cluster Security
4	Select authentication type and enter credentials and URL
5	Test the connection

Create a Scan

Navigate to Project Scanners

1. Open a project in Invicti AppSec.
2. Go to Settings > Scanners.
3. Click Add Scanner.

Add Red Hat Advanced Cluster Security Scanner

1. Select CS as the scanner type.
2. Choose Red Hat Advanced Cluster Security from the scanner list.
3. Click Add to open the scan configuration drawer.

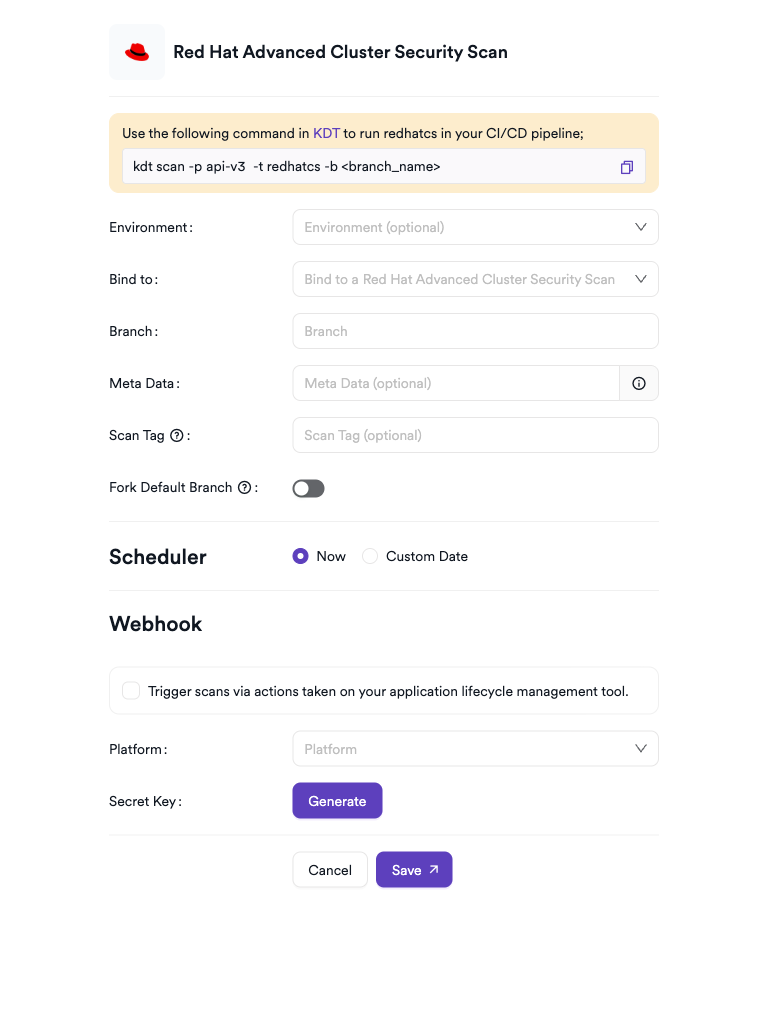

Scan Configuration Fields

Field	Description	Required
Environment	The deployment environment (e.g., feature, production)	No
Bind to	Select the container image from RHACS to associate with this scan	Yes
Branch	Source code branch for this scan	Yes
Meta Data	Additional metadata to tag the scan	No
Scan Tag	Free-text tag to identify or group scans	No
Fork Default Branch / Fork Source Branch	Enable to fork scan results from the default or source branch	No

note

Bind to links the Invicti AppSec project to a specific container image tracked in RHACS. Vulnerability findings from that image will be imported into the project.

Scheduler

Enable the Scheduler toggle to automatically run RHACS scans on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan completion notifications.

KDT Command

kdt scan -p <project_name> -t redhatcs -b <branch_name>

Troubleshooting

Connection Fails

Issue	Resolution
Invalid username or password	Verify the credentials against your RHACS Central instance.
Invalid API token	The token may have expired or been revoked. Generate a new token in RHACS under Authentication Tokens.
URL unreachable	Confirm the RHACS Central URL is reachable from the Invicti AppSec server. Check firewall and network rules.
TLS certificate error	If using a self-signed certificate, enable the Insecure option in the connection settings.
Insufficient permissions	Ensure the user or token has at least read access to image vulnerability data in RHACS.

Scan Issues

Issue	Resolution
No images available in Bind to dropdown	Ensure at least one container image has been scanned in RHACS and is accessible via the credentials provided.
Scan shows no findings	The image may have no known vulnerabilities, or the RHACS scan may not have completed yet. Check the RHACS console.
Scan not starting	Verify the scanner is activated and the connection test passes in the integration settings.

Best Practices

• Prefer Token authentication over Basic authentication to avoid exposing user credentials.
• Use a dedicated RHACS service account or token with the minimum required permissions (read-only) for Invicti AppSec.
• Rotate API tokens periodically and update the integration settings in Invicti AppSec accordingly.
• Associate each Invicti AppSec project with the specific container image that represents its production artifact for accurate vulnerability tracking.
• Use the Scheduler to align scans with your container image rebuild cadence so findings always reflect the latest image state.

Limitations

• RHACS CS in Invicti AppSec imports vulnerability data from existing RHACS image scans — it does not trigger new RHACS scans.
• Only images already tracked within RHACS are available for binding; images not yet scanned by RHACS will not appear.
• Runtime threat detection signals from RHACS are not surfaced in Invicti AppSec findings; only vulnerability data is imported.

---
