availability

Package: Invicti AppSec Enterprise (on-premise, on-demand)

Azure OpenAI

Azure OpenAI Service is Microsoft's cloud-hosted offering of OpenAI's language models, deployed and managed through Microsoft Azure. The Invicti AppSec integration with Azure OpenAI enables AI-powered features — such as vulnerability remediation guidance and security analysis — by connecting to a model deployed in your own Azure environment.

Purpose in Invicti AppSec

Azure OpenAI is used in Invicti AppSec as an LLM Provider — supplying the language model that powers AI-assisted security features from within your Azure infrastructure.

Use Case	Description
AI remediation guidance	Generate fix recommendations for discovered vulnerabilities using your Azure-hosted OpenAI deployment
Security analysis	Use Azure OpenAI's language models to assist in triage and prioritization of security findings
Data residency compliance	Keep AI requests within your Azure tenant and region, meeting organizational data governance requirements

Where it is used

Page	Navigation Path	Purpose
Integrations — LLM Providers	Integrations › LLM Providers	Admin activation and model configuration

Prerequisites

Before activating the integration, gather the following details from your Azure portal:

Field	Description	Required
API Key	The API key for your Azure OpenAI resource	Yes
Resource Name	The name of your Azure OpenAI resource (the subdomain part of your endpoint URL)	Yes
Deployment Name	The name of the specific model deployment you want Invicti AppSec to use	Yes
API Version	The Azure OpenAI REST API version (defaults to 2024-10-21 if left blank)	No

Obtain credentials (on the Azure side)

API Key:

1. Open the Azure portal and navigate to your Azure OpenAI resource.
2. In the left menu, select Keys and Endpoint.
3. Copy KEY 1 or KEY 2 — either can be used.

Resource Name:

1. In your Azure OpenAI resource overview, locate the Endpoint URL. It follows the format: https://<resource-name>.openai.azure.com/
2. The <resource-name> portion is your Resource Name.

Deployment Name:

1. In the Azure portal, navigate to your Azure OpenAI resource.
2. Select Model deployments (or open Azure AI Foundry and go to Deployments).
3. Find the deployment you want to use and copy its Deployment name.

API version (optional):

• Invicti AppSec defaults to 2024-10-21 if this field is left blank.
• To use a specific version, refer to the Azure OpenAI API release notes for available versions.

---

Activation steps

Step 1: Navigate to Integrations

From the left sidebar, click Integrations.

Step 2: Open the LLM Providers tab

On the Integrations page, click the LLM Providers tab.

Step 3: Find and activate Azure OpenAI

Locate the Azure OpenAI card.

• If it isn't yet activated, click Activate to open the settings drawer.
• If it's already activated, click the gear icon to open the settings drawer and reconfigure.

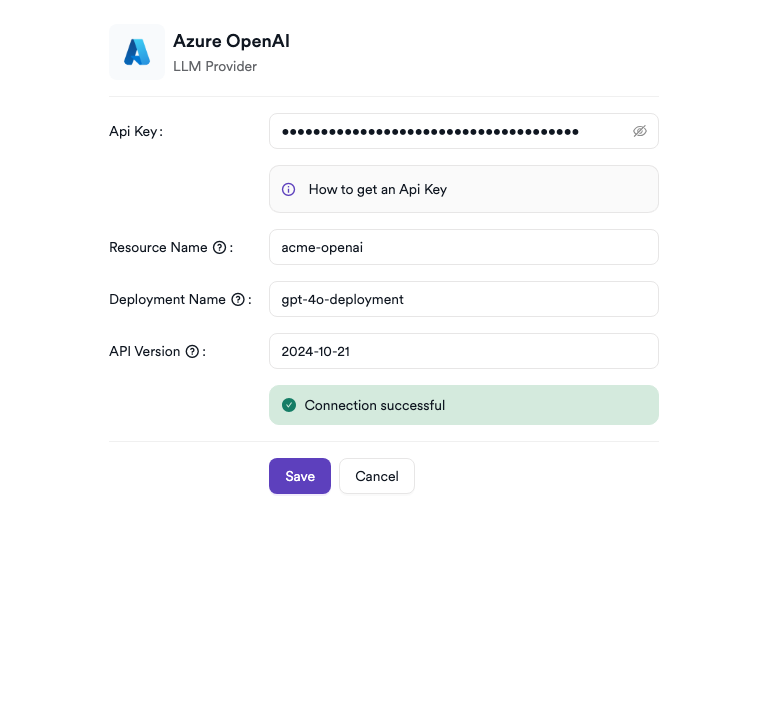

Step 4: Fill in the required fields

In the settings drawer, enter your Azure OpenAI credentials:

Field	Description	Required
API Key	The API key from your Azure OpenAI resource	Yes
Resource Name	Your Azure OpenAI resource name (subdomain of the endpoint URL)	Yes
Deployment Name	The name of the model deployment to use	Yes
API Version	Azure OpenAI API version (leave blank to use the default 2024-10-21)	No

note

Unlike other LLM providers, Azure OpenAI doesn't use a separate Model dropdown — the model is determined by the Deployment Name you configure.

Step 5: Test the connection

Click Test Connection. A green "Connection successful" message confirms that Invicti AppSec can reach your Azure OpenAI deployment with the provided credentials.

Step 6: Save

Click Save to complete the activation.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the LLM Providers tab
3	Find Azure OpenAI and click Activate (or the gear icon)
4	Enter your API Key, Resource Name, Deployment Name, and optionally API Version
5	Click Test Connection — verify the success message
6	Click Save

Troubleshooting

Issue	Resolution
Connection failed	Verify the API key, resource name, and deployment name are all correct. Ensure the Azure OpenAI resource is deployed and accessible.
Invalid API key	Regenerate the key from Keys and Endpoint in your Azure OpenAI resource and update the configuration in Invicti AppSec.
Resource not found	Confirm the Resource Name matches the subdomain of your Azure OpenAI endpoint URL exactly.
Deployment not found	Verify the Deployment Name matches the name shown in Model deployments in the Azure portal.
API version error	Leave the API Version field blank to use the default, or check the Azure OpenAI documentation for a supported API version string.
401 / 403 Unauthorized	Confirm the API key belongs to the correct Azure OpenAI resource and hasn't been disabled or rotated.

---

Need help?

Invicti Support team is ready to provide you with technical help. Go to Help Center
