Review and report

availability

Deployment: Invicti Platform on-demand, Invicti Platform on-premises

Part of API scanning workflows series

This is part 4 of 4 in the API scanning workflows series.
Previous: Launch

This document explains how to analyze completed scan results, investigate individual vulnerabilities, and generate detailed security reports using the Invicti Platform API.

Prerequisites

Before following this document, ensure you have completed:

Get started - API key and testing tools
Configure - Target creation and configuration
Launch - Completed scan execution

Step 1: Review scan activity (optional)

This step retrieves the scan activity log - the same messages shown in the UI during scanning. For a completed scan, most messages are informational (scan started, scan finished). The main reason to run this request is to investigate warnings such as authentication issues encountered during the scan. If you're not debugging scan behavior, you can skip to Step 2.

Run this request to review scan statistics and activity

Using the DAST API, retrieve scan statistics using the scan_id and scan_session_id from your completed scan:

GET <base-url>/api/v1/scans/<your-scan-id>/results/<your-scan-session-id>/statistics
Headers:
  accept: application/json
  X-Auth: <your-api-token>

Placeholder	Required	Description	Example
`<base-url>`	Yes	Your regional platform URL. Refer to Platform URLs	`https://platform.invicti.com`
`<your-api-token>`	Yes	Your API key from User settings	`a1b2c3d4-e5f6-...`
`<your-scan-id>`	Yes	The scan ID from the Launch workflow	`cda0f3cf-5a2d-41eb-a9fb-5fa661167fd9`
`<your-scan-session-id>`	Yes	The scan session ID from the Launch workflow	`d54012e4-9a9e-4b18-8cd7-f48bb7206225`

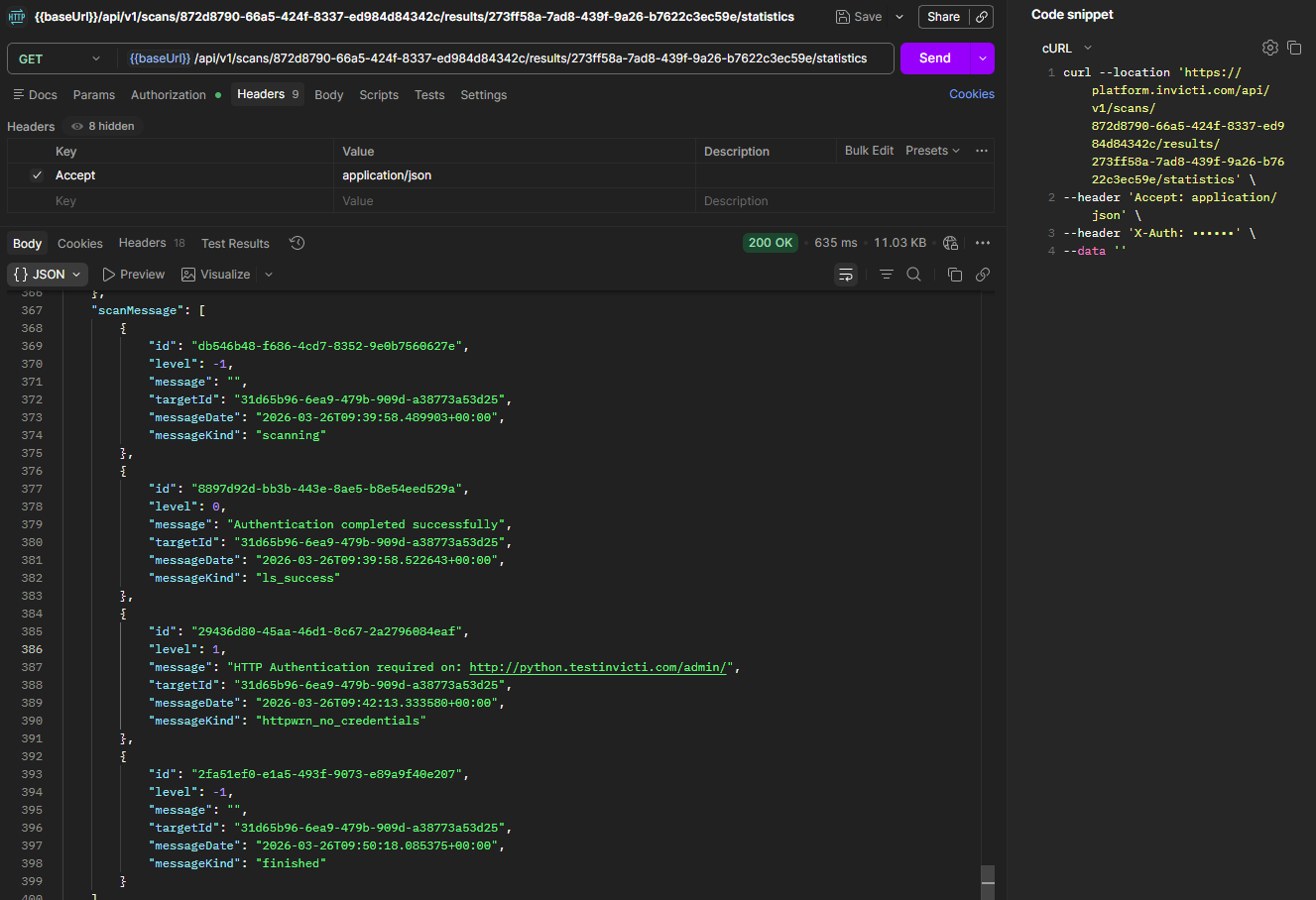

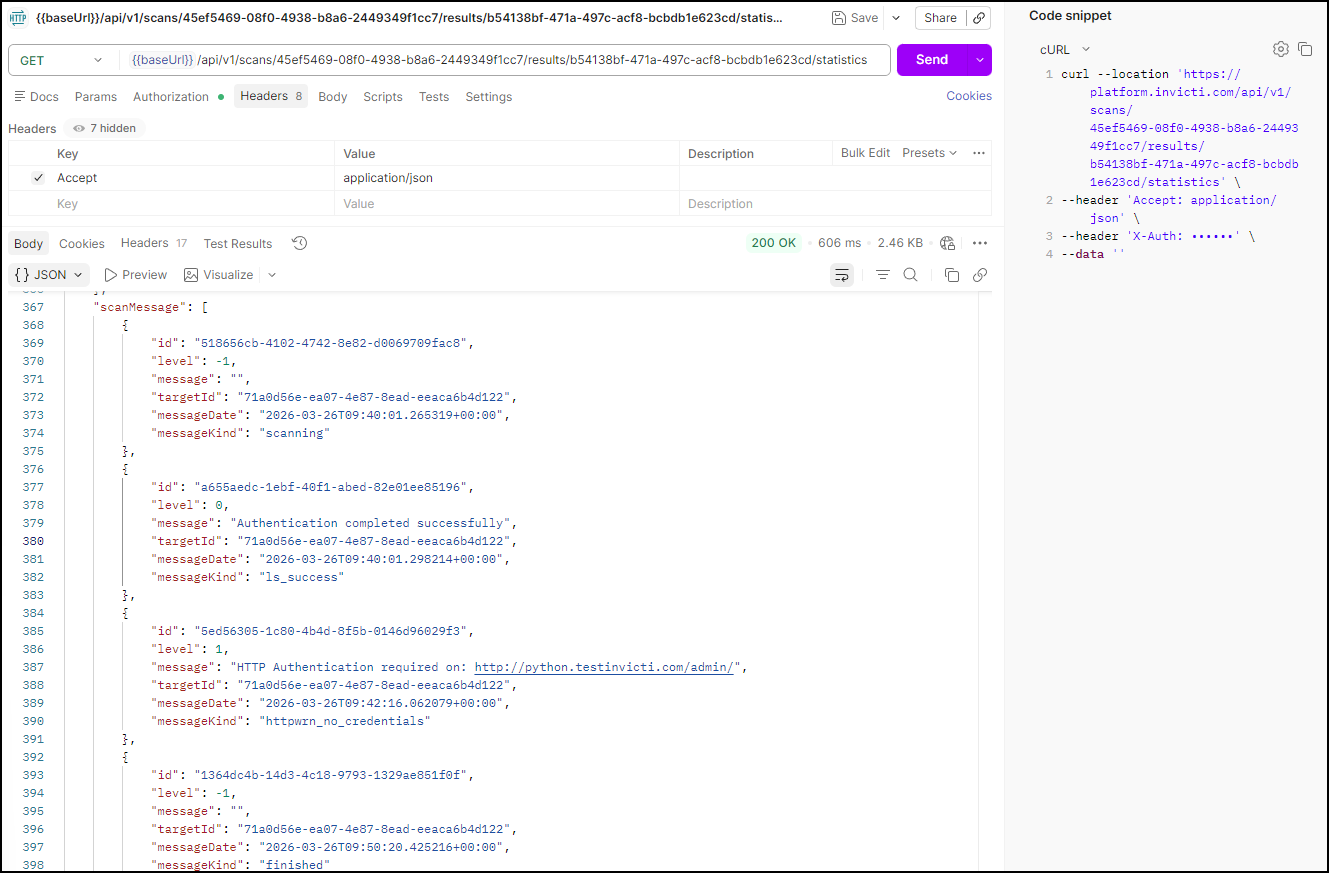

Expected response: HTTP 200 with scan activity data. The scanMessage array contains the same scan activity data you see in the UI.

{
  "scanMessage": [
    {
      "id": "28370a1d-b0b2-47b6-93e2-e4a4cf72f192",
      "level": -1,
      "message": "",
      "targetId": "2df49409-ee21-4080-9640-eb46f4610054",
      "messageDate": "2026-03-17T12:50:41.325829+00:00",
      "messageKind": "scanning"
    },
    {
      "id": "ea4568b9-874f-45c6-897a-0929e4877a12",
      "level": 1,
      "message": "HTTP Authentication required on: http://python.testinvicti.com/admin/",
      "targetId": "2df49409-ee21-4080-9640-eb46f4610054",
      "messageDate": "2026-03-17T12:52:50.301137+00:00",
      "messageKind": "httpwrn_no_credentials"
    },
    {
      "id": "4c2cca47-f42b-40f1-9b41-955c623a8441",
      "level": -1,
      "message": "",
      "targetId": "2df49409-ee21-4080-9640-eb46f4610054",
      "messageDate": "2026-03-17T12:57:38.650641+00:00",
      "messageKind": "finished"
    }
  ]
}

Interpret scan messages

Message Kind	Description	Action Required
`scanning`	Scan started	Information only
`finished`	Scan completed	Information only
`httpwrn_no_credentials`	Authentication issue encountered	Consider configuring authentication
`warning`	Non-critical scan warning	Review scan configuration
`error`	Scan error occurred	Investigate and resolve

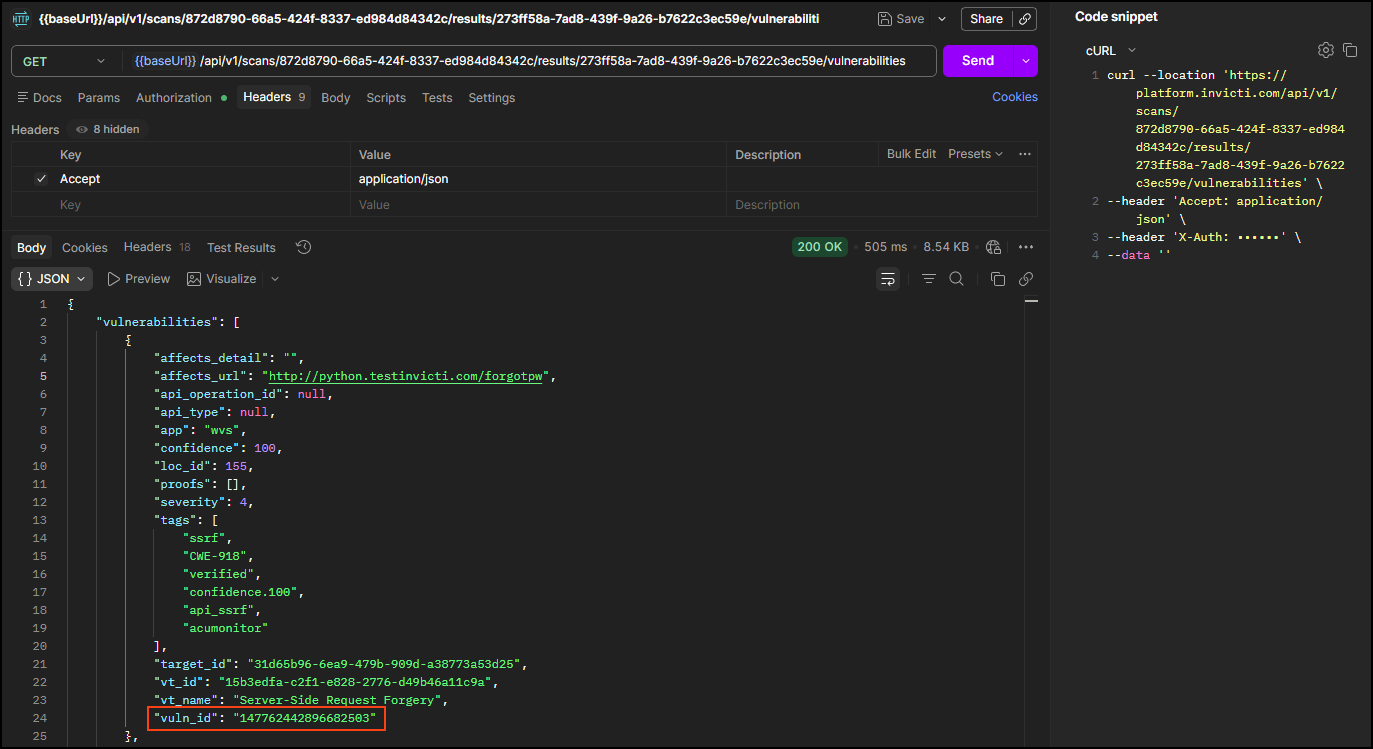

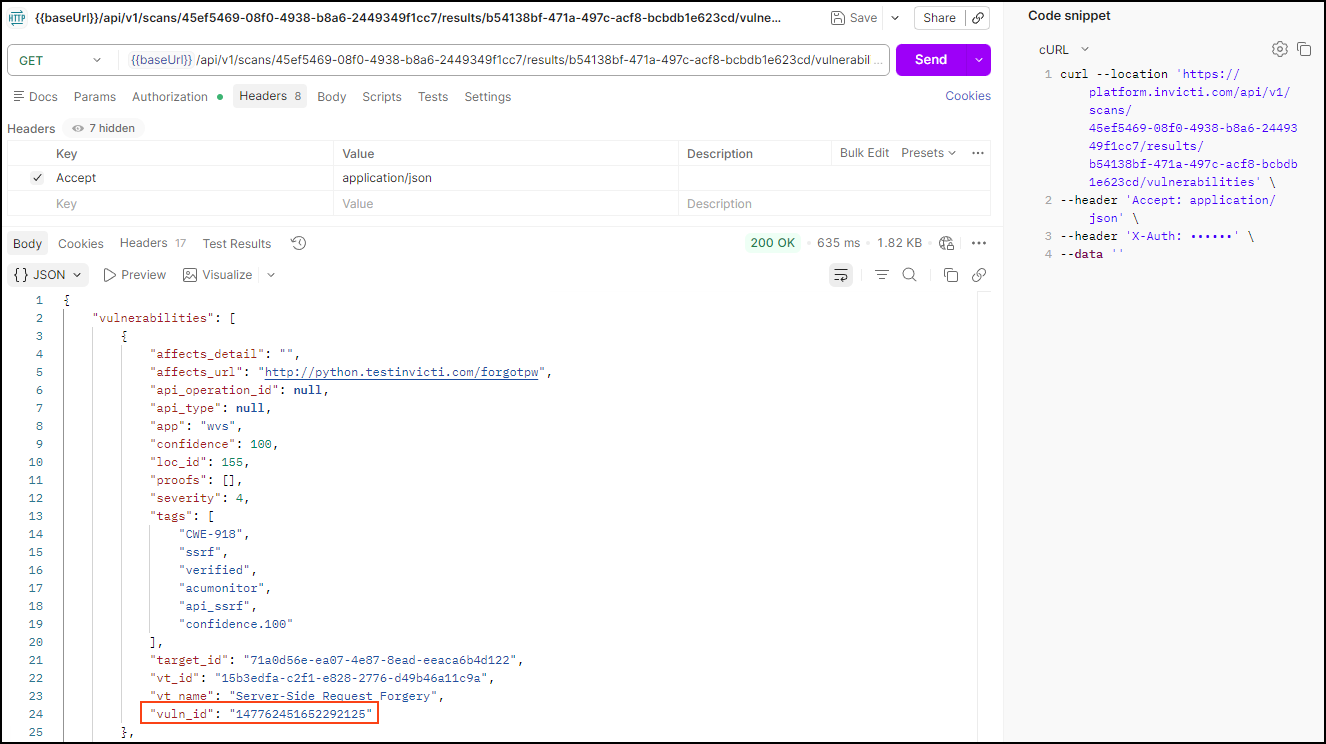

Step 2: Review discovered vulnerabilities

This step retrieves the full list of vulnerabilities found during the scan. Each vulnerability includes a severity rating, the affected URL, and a vuln_id you need for detailed analysis in Step 3.

Run this request to get vulnerability summary

Once the scan is completed, retrieve the found vulnerabilities using the scan_id and scan_session_id:

GET <base-url>/api/v1/scans/<your-scan-id>/results/<your-scan-session-id>/vulnerabilities
Headers:
  accept: application/json
  X-Auth: <your-api-token>

Placeholder	Required	Description	Example
`<base-url>`	Yes	Your regional platform URL. Refer to Platform URLs	`https://platform.invicti.com`
`<your-api-token>`	Yes	Your API key from User settings	`a1b2c3d4-e5f6-...`
`<your-scan-id>`	Yes	The scan ID from the Launch workflow	`cda0f3cf-...`
`<your-scan-session-id>`	Yes	The scan session ID from the Launch workflow	`d54012e4-...`

Expected response: HTTP 200 with a list of vulnerabilities. Note the vuln_id for each vulnerability - you'll need these for detailed analysis.

{
  "vulnerabilities": [
    {
      "affects_detail": "",
      "affects_url": "http://python.testinvicti.com/forgotpw",
      "api_operation_id": null,
      "api_type": null,
      "app": "wvs",
      "confidence": 100,
      "loc_id": 121,
      "proofs": [],
      "severity": 4,
      "tags": [
        "ssrf",
        "CWE-918",
        "verified",
        "confidence.100",
        "api_ssrf",
        "acumonitor"
      ],
      "target_id": "2df49409-ee21-4080-9640-eb46f4610054",
      "vt_id": "15b3edfa-c2f1-e828-2776-d49b46a11c9a",
      "vt_name": "Server-Side Request Forgery",
      "vuln_id": "146155269760494467"
    }
  ]
}

Understand vulnerability fields

Field	Description	Importance
`vuln_id`	Unique identifier for this vulnerability instance	Required for detailed investigation
`vt_name`	Vulnerability type name	Describes the security issue
`severity`	Severity level (1=Low to 5=Critical)	Risk prioritization
`confidence`	Detection confidence (0-100)	Reliability indicator
`affects_url`	Specific URL where vulnerability was found	Location for remediation
`tags`	Vulnerability classification tags	Context and categorization

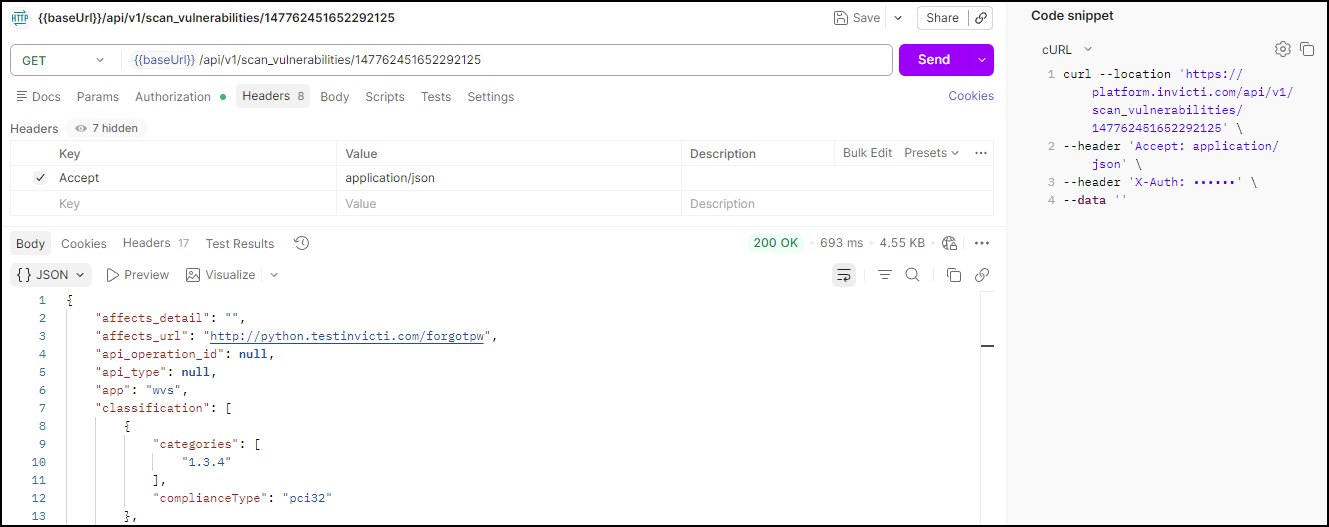

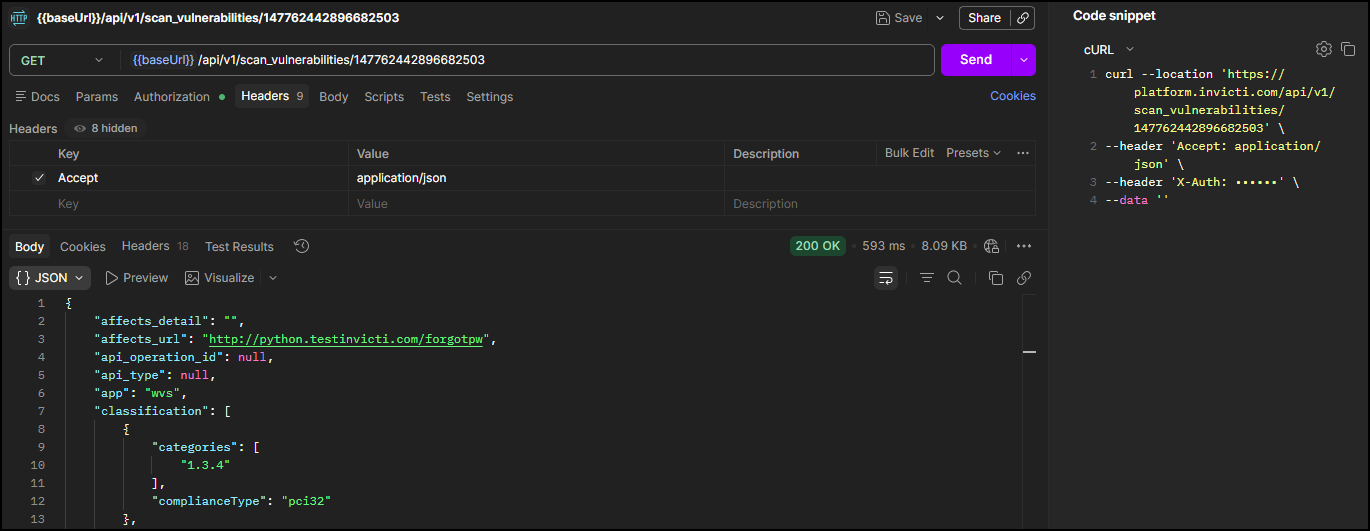

Step 3: Analyze individual vulnerabilities

This step retrieves the full technical detail for a single vulnerability using its vuln_id from Step 2. Run this request once per vulnerability you want to investigate. The response includes a description, impact assessment, proof of concept, and remediation guidance.

Run this request to get detailed vulnerability information

With the vuln_id from Step 2, you can review each vulnerability in detail to understand the security issue and remediation steps:

GET <base-url>/api/v1/scan_vulnerabilities/<your-vuln-id>
Headers:
  accept: application/json
  X-Auth: <your-api-token>

Placeholder	Required	Description	Example
`<base-url>`	Yes	Your regional platform URL. Refer to Platform URLs	`https://platform.invicti.com`
`<your-api-token>`	Yes	Your API key from User settings	`a1b2c3d4-e5f6-...`
`<your-vuln-id>`	Yes	The vulnerability ID from Step 2	`146155269760494467`

Expected response: HTTP 200 with comprehensive vulnerability details including:

Description: Detailed explanation of the security issue
Impact: Potential consequences if exploited
Proof of concept: Evidence demonstrating the vulnerability
Remediation: Specific steps to fix the issue
References: Links to security standards and documentation

This detailed information enables development teams to understand and remediate security issues effectively.

Step 4: Specify report template (optional)

This step retrieves the list of available report templates and their IDs. If you want to use the Comprehensive template (recommended for most use cases), you can skip this step - the template ID is provided directly in Step 5.

Run this request to browse available report templates

If you want to use the Comprehensive report template (recommended), you can skip this step and use template ID 11111111-1111-1111-1111-111111111126.

To explore other templates, run this request to retrieve all available options:

GET <base-url>/api/v1/report_templates
Headers:
  accept: application/json
  X-Auth: <your-api-token>

Placeholder	Required	Description	Example
`<base-url>`	Yes	Your regional platform URL. Refer to Platform URLs	`https://platform.invicti.com`
`<your-api-token>`	Yes	Your API key from User settings	`a1b2c3d4-e5f6-...`

Expected response: HTTP 200 with a list of all template IDs, accepted sources, and names.

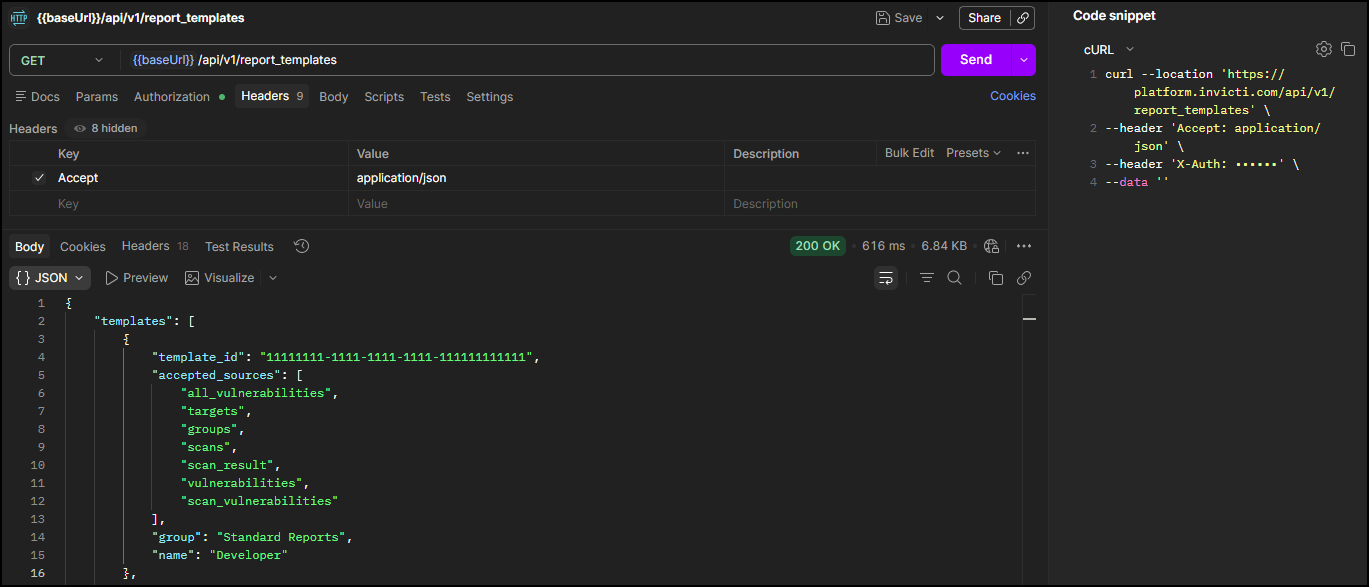

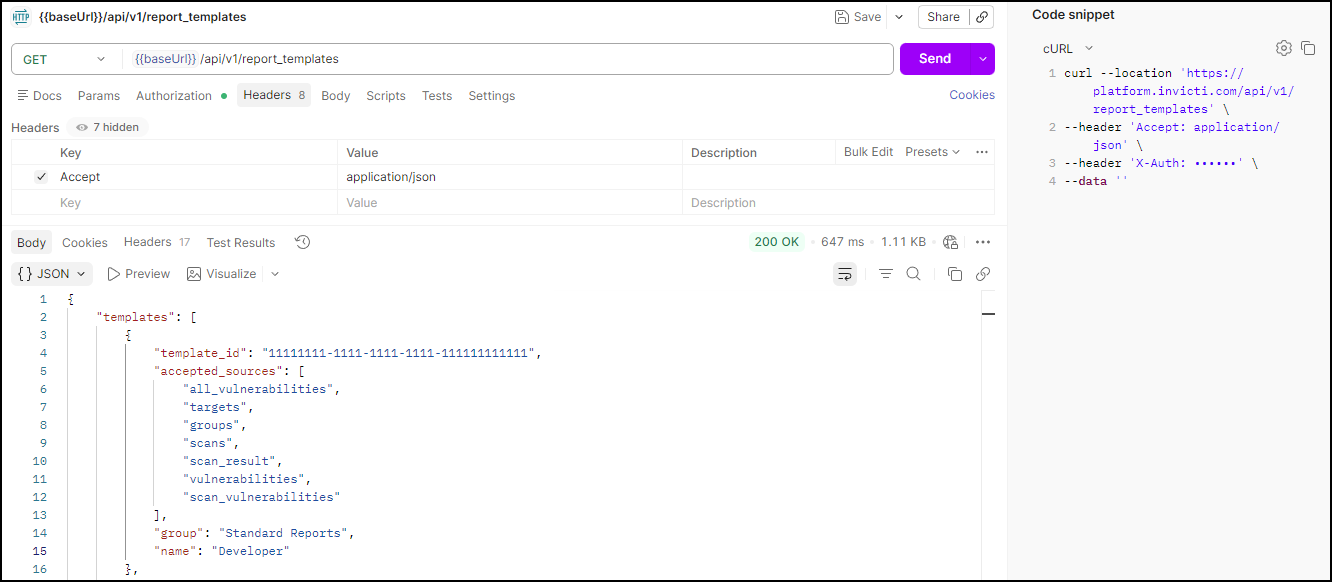

Get the report template id or use one from the list.

Standard report templates

Name	Template ID	Use Case
Affected Items	`11111111-1111-1111-1111-111111111115`	Focus on vulnerable URLs and parameters
Comprehensive	`11111111-1111-1111-1111-111111111126`	Complete technical analysis (recommended)
Developer	`11111111-1111-1111-1111-111111111111`	Developer-focused remediation guidance
Executive Summary	`11111111-1111-1111-1111-111111111113`	High-level security overview for management
SCA	`11111111-1111-1111-1111-111111111142`	Software composition analysis

Compliance report templates

Standard	Template ID	Use Case
CWE/SANS Top 25	`11111111-1111-1111-1111-111111111116`	Most dangerous software weaknesses
DISA STIG	`11111111-1111-1111-1111-111111111122`	Defense Information Systems Agency security requirements
HIPAA	`11111111-1111-1111-1111-111111111114`	Healthcare data protection compliance
ISO 27001	`11111111-1111-1111-1111-111111111117`	Information security management
NIST SP 800-53	`11111111-1111-1111-1111-111111111118`	Federal security controls
OWASP ASVS 5.0	`11111111-1111-1111-1111-111112025003`	Application security verification standard
OWASP Top 10 2025	`11111111-1111-1111-1111-111111111131`	Latest web application security standard
OWASP Top 10 API Security Risks 2023	`11111111-1111-1111-1111-111112025002`	API-specific security risks
OWASP Top 10 for LLM Applications 2025	`11111111-1111-1111-1111-111112025001`	AI and LLM application security
PCI DSS 4.0	`11111111-1111-1111-1111-111111111130`	Payment card industry compliance

Step 5: Generate a report

This step submits the report generation request. The API returns a report_id immediately - report generation happens asynchronously, so the report won't be ready yet. Use the report_id in Step 6 to poll for completion and retrieve the download links.

Run this request to initiate report generation

Using the DAST API, generate a comprehensive report for your scan:

POST <base-url>/api/v1/reports
Headers:
  accept: application/json
  content-type: application/json
  X-Auth: <your-api-token>
Body:
{
  "template_id": "<your-template-id>",
  "source": {
    "list_type": "scans",
    "id_list": [
      "<your-scan-id>"
    ]
  }
}

Placeholder	Required	Description	Example
`<base-url>`	Yes	Your regional platform URL. Refer to Platform URLs	`https://platform.invicti.com`
`<your-api-token>`	Yes	Your API key from User settings	`a1b2c3d4-e5f6-...`
`<your-template-id>`	Yes	The template ID from Step 4	`11111111-1111-...`
`<your-scan-id>`	Yes	The scan ID from the Launch workflow	`cda0f3cf-...`

Expected response: HTTP 201 with report generation details. Note the report_id - you need it in Step 6.

{
  "download": [],
  "generation_date": "2026-03-17T13:14:16.318052+00:00",
  "report_id": "1777d3d2-f4c8-4051-a36d-c0a9a7c0ed53",
  "source": {
    "list_type": "scans",
    "description": "http://python.testinvicti.com;",
    "id_list": [
      "21e8c7ab-0ad9-4453-ae24-a1fe1d5ebab8"
    ]
  },
  "status": "queued",
  "template_id": "11111111-1111-1111-1111-111111111126",
  "template_name": "Comprehensive",
  "template_type": 0
}

Note: The download array is empty and status is queued because the report is still being generated. Download links appear once generation is complete (Step 6).

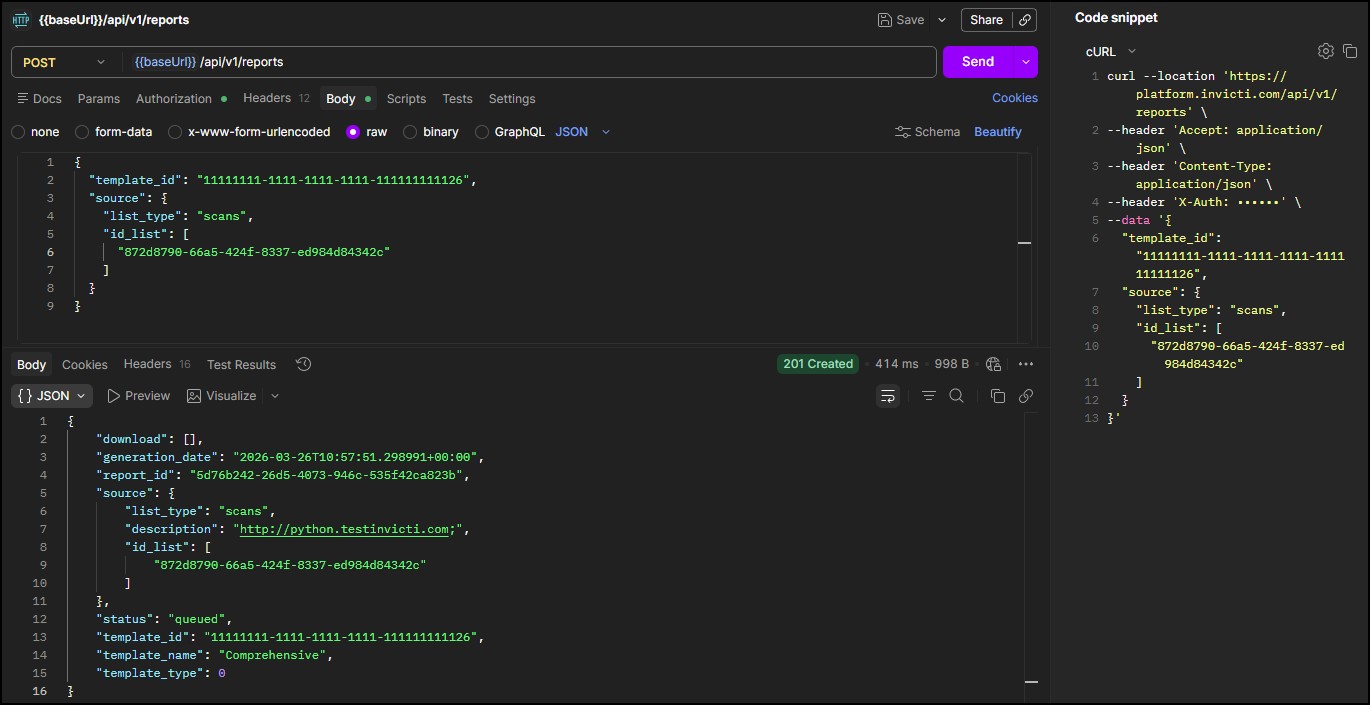

Run this request to initiate report generation.

Step 6: Download completed report

This step polls the report status using the report_id from Step 5. Once the status field shows completed, the response includes download URLs for both HTML and PDF versions of the report.

Run this request to get report download links

Using the DAST API, retrieve your completed report using the report_id from Step 5:

GET <base-url>/api/v1/reports/<your-report-id>
Headers:
  accept: application/json
  X-Auth: <your-api-token>

Placeholder	Required	Description	Example
`<base-url>`	Yes	Your regional platform URL. Refer to Platform URLs	`https://platform.invicti.com`
`<your-api-token>`	Yes	Your API key from User settings	`a1b2c3d4-e5f6-...`
`<your-report-id>`	Yes	The report ID from Step 5	`1777d3d2-...`

Expected response: HTTP 200. Once status is completed, the download array contains download links.

{
  "download": [
    "https://reports.example.com/20260317_Comprehensive_http_python_testinvicti_com.html",
    "https://reports.example.com/20260317_Comprehensive_http_python_testinvicti_com.pdf"
  ],
  "generation_date": "2026-03-17T13:14:16.304859+00:00",
  "report_id": "1777d3d2-f4c8-4051-a36d-c0a9a7c0ed53",
  "source": {
    "list_type": "scans",
    "description": "http://python.testinvicti.com;",
    "id_list": [
      "21e8c7ab-0ad9-4453-ae24-a1fe1d5ebab8"
    ]
  },
  "status": "completed",
  "template_id": "11111111-1111-1111-1111-111111111126",
  "template_name": "Comprehensive",
  "template_type": 0
}

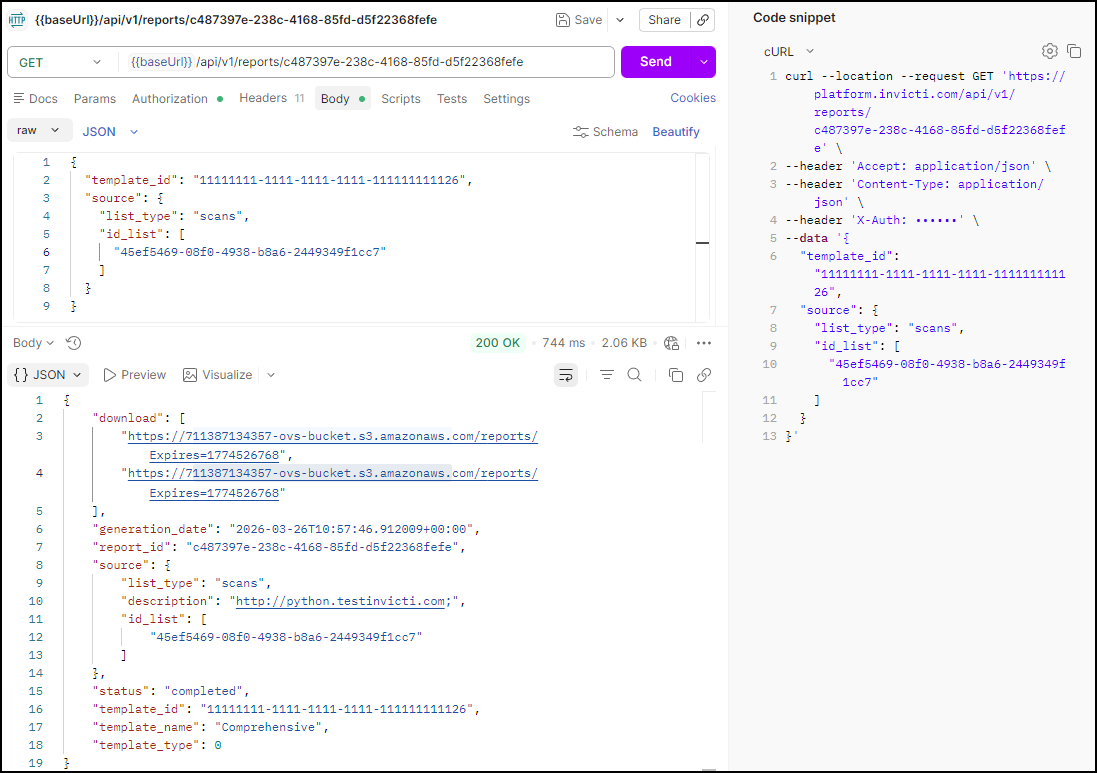

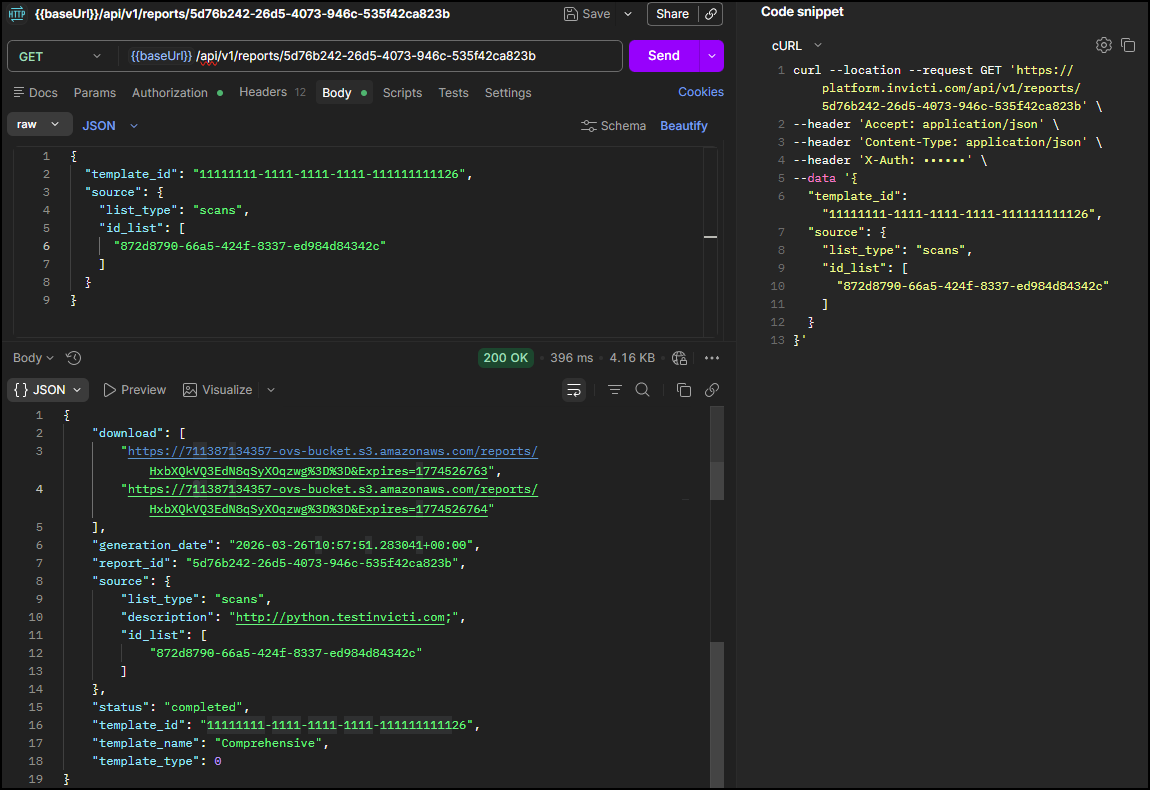

Get downloadable links for the generated reports.

Report formats available

HTML Report: Interactive web format with clickable navigation
PDF Report: Print-ready format for stakeholder distribution

Download recommendation: Use the provided URLs to download reports directly, or integrate download automation into your CI/CD pipeline.

Summary

You have successfully completed the full API-driven security scanning workflow:

✅ Scan activity reviewed - Scan log inspected for warnings and errors (optional)
✅ Vulnerabilities identified - Security issues listed and filtered by severity
✅ Detailed analysis performed - Individual vulnerabilities inspected for technical detail
✅ Report generated - Security report created and download URLs retrieved

Key deliverables

Scan statistics: Performance and coverage metrics
Vulnerability inventory: Complete list of security issues by severity
Detailed findings: Technical analysis with proof of concept
Compliance reports: Standards-aligned documentation (HTML & PDF)

Next steps

With completed results analysis, you can now:

Integrate into CI/CD: Automate the same API workflow using CI-driven scans
Handle API errors: Implement robust error handling with API response patterns and error handling
Scale operations: Apply this workflow across multiple applications and environments

Complete workflow series

Overview
Part 1: Get started
Part 2: Configure
Part 3: Launch
Part 4: Review and report ← You are here

You have mastered the complete Invicti Platform API workflow. You can now implement automated security scanning at scale.

Need help?

Invicti Support team is ready to provide you with technical help. Go to Help Center

Was this page useful?

Prerequisites​

Step 1: Review scan activity (optional)​

Interpret scan messages​

Step 2: Review discovered vulnerabilities​

Understand vulnerability fields​

Step 3: Analyze individual vulnerabilities​

Step 4: Specify report template (optional)​

Standard report templates​

Compliance report templates​

Step 5: Generate a report​

Step 6: Download completed report​

Report formats available​

Summary​

Key deliverables​

Next steps​

Complete workflow series​

Need help?​
