This document is for:
Invicti Enterprise On-Premises

Configuring Custom Database Maintenance

Invicti Enterprise performs daily automatic SQL Server Index maintenance every morning at 6 a.m. (RebuildIndexesLongTermQuery) and 7 a.m. (RebuildIndexes). You can disable this automatic database maintenance and instead set your own custom database maintenance schedule using the SQL Server Agent.

How to configure custom database maintenance​

info

You will need the SQL Server Agent installed in order to carry out these instructions.

Step 1: Disable automatic database maintenance​

  • Log in to Invicti Enterprise as an Account Owner or Account Administrator.
  • Select Settings > Database from the left-side menu.

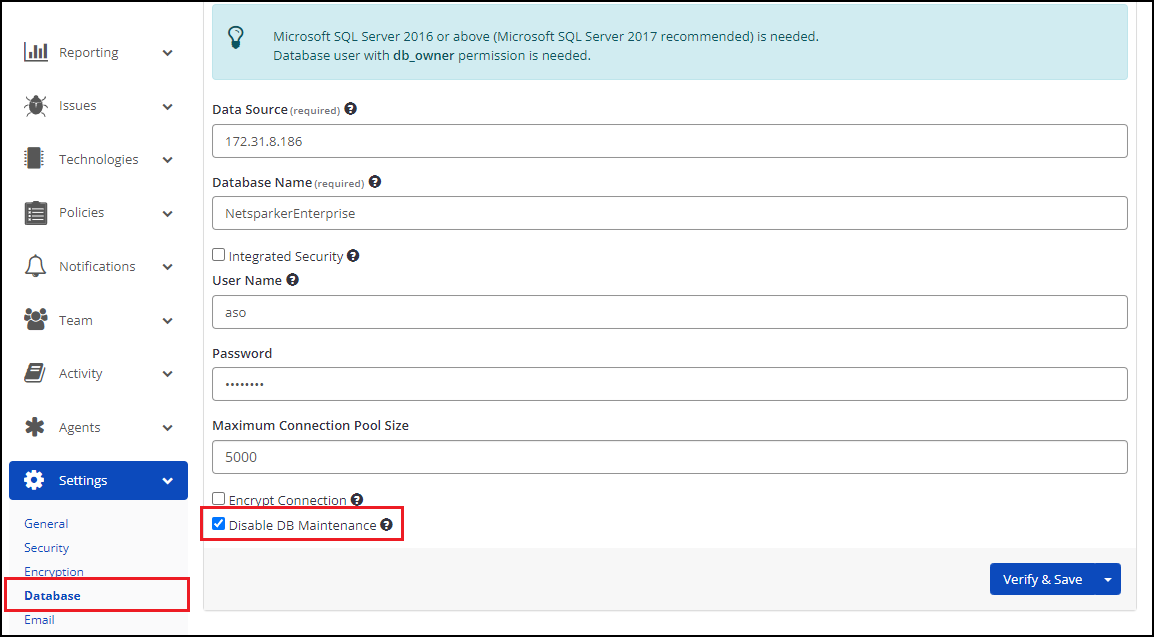

  • Click the checkbox next to Disable DB Maintenance.
  • Click Verify & Save.
  • Restart IIS. (Open Command Prompt and execute the command: iisreset)
Disable DB Maintenance option

Step 2: Create a new database for maintenance operations​

  • Create a new SQL Server database using the query below.
USE [master]
GO

CREATE DATABASE [DBAtools]

Step 3: Run stored procedure and table creation operations​

  • Execute the following "CommandLog" script on the newly created DBAtools database to create a command log table. Information about the operations performed for Index maintenance will be recorded in this table.
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
IF NOT EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[CommandLog]') AND type in (N'U'))
BEGIN
CREATE TABLE [dbo].[CommandLog](
  [ID] [int] IDENTITY(1,1) NOT NULL,
  [DatabaseName] [sysname] NULL,
  [SchemaName] [sysname] NULL,
  [ObjectName] [sysname] NULL,
  [ObjectType] [char](2) NULL,
  [IndexName] [sysname] NULL,
  [IndexType] [tinyint] NULL,
  [StatisticsName] [sysname] NULL,
  [PartitionNumber] [int] NULL,
  [ExtendedInfo] [xml] NULL,
  [Command] [nvarchar](max) NOT NULL,
  [CommandType] [nvarchar](60) NOT NULL,
  [StartTime] [datetime2](7) NOT NULL,
  [EndTime] [datetime2](7) NULL,
  [ErrorNumber] [int] NULL,
  [ErrorMessage] [nvarchar](max) NULL,
 CONSTRAINT [PK_CommandLog] PRIMARY KEY CLUSTERED
(
  [ID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON)
)
END
GO
  • Execute the following “CommandExecute” script on the DBAtools database. (Click the + (plus) icon below to expand the script)

CommandExecute script​

  • Execute the following “IndexOptimize” script on the DBAtools database. (Click the + (plus) icon below to expand the script)

IndexOptimize script​

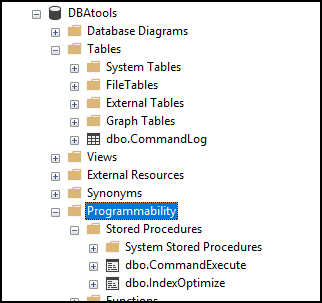

Your database structure will now look like this:

CommandLog script execution

Step 4: Schedule automatic maintenance operations​

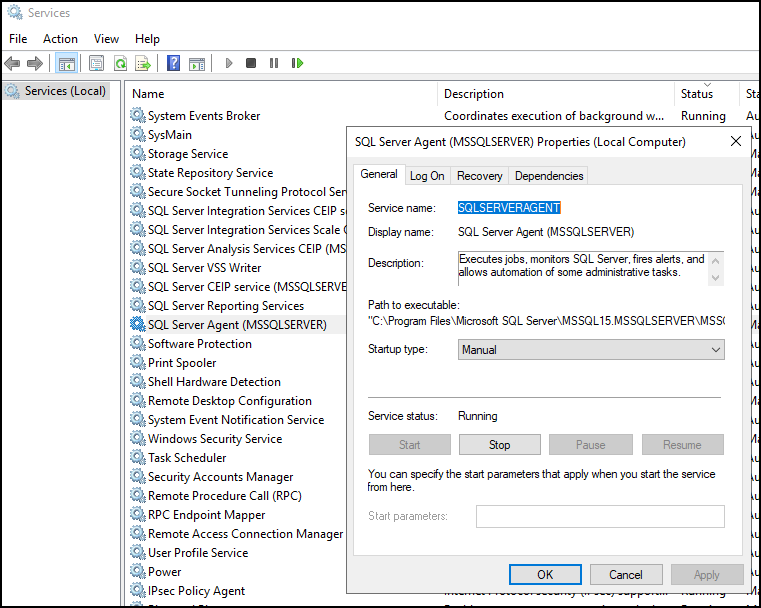

  • Ensure that the SQL Server Agent is running. (Open Services to check the status. If it is not running, right-click on SQL Server Agent and select Properties, then click Start.)
Database structure after setup

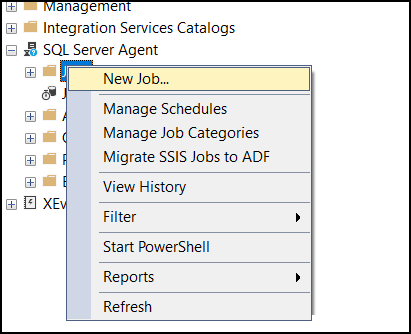

  • In Object Explorer, right-click on Jobs (under the SQL Server Agent node) and select New Job… from the context menu.
SQL Server Agent Services

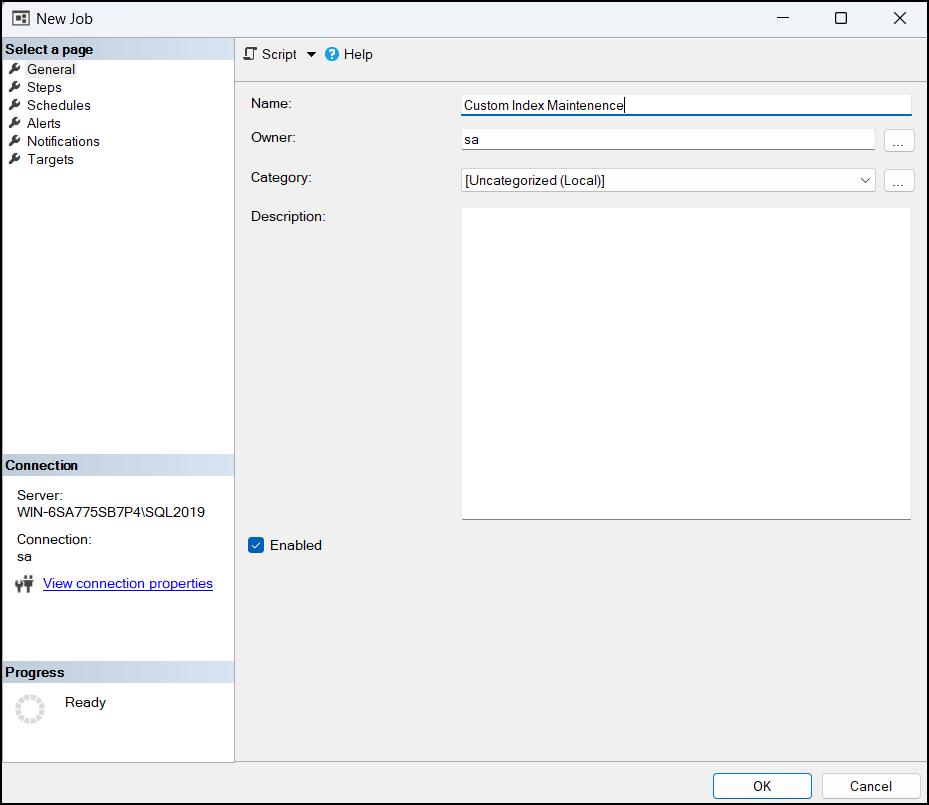

  • In the General tab of the New Job form, set the Name, Owner, Category, and Description for the job.
New Job context menu

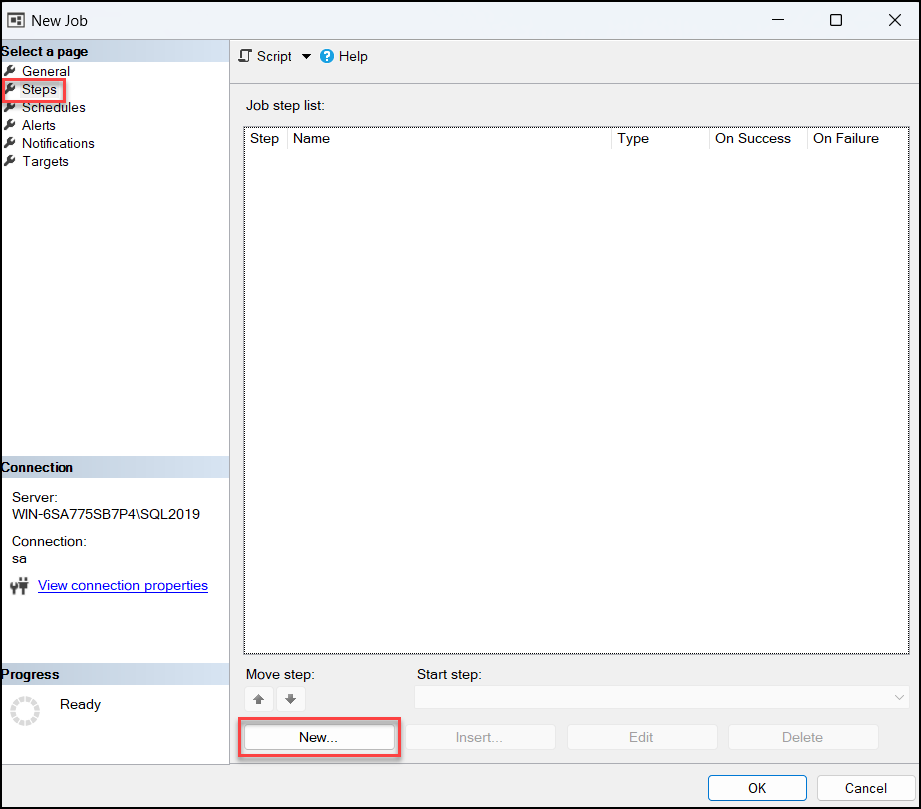

  • Select the Steps tab, then click New…
Job General tab settings

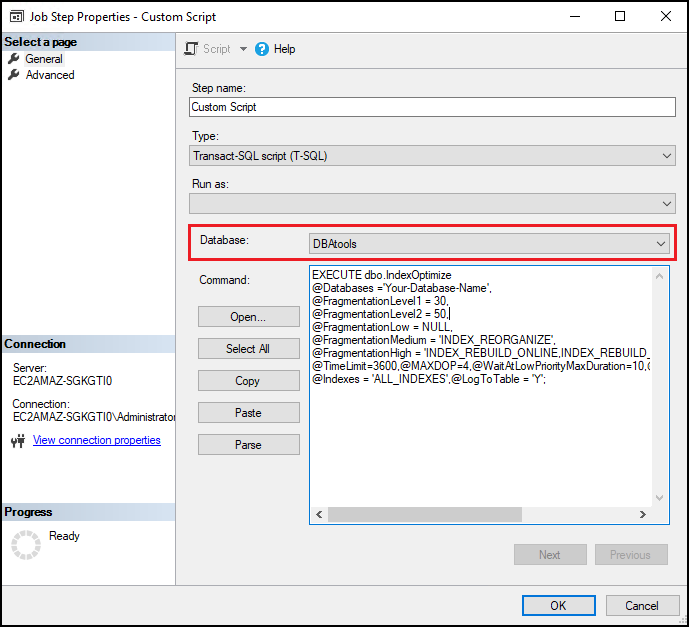

  • Specify the Step name. In the Type field, select Transact-SQL script (T-SQL).
Job Steps tab
  • Ensure the Database field is set to DBAtools. Then enter the custom maintenance script into the Command box. Click OK to save the job step.
EXECUTE dbo.IndexOptimize
@Databases ='Your-Database-Name',
@FragmentationLevel1 = 30,
@FragmentationLevel2 = 50,
@FragmentationLow = NULL,
@FragmentationMedium = 'INDEX_REORGANIZE',
@FragmentationHigh = 'INDEX_REBUILD_ONLINE,INDEX_REBUILD_OFFLINE',
@TimeLimit=3600,@MAXDOP=4,@WaitAtLowPriorityMaxDuration=10,@WaitAtLowPriorityAbortAfterWait=SELF,
@Indexes = 'ALL_INDEXES',@LogToTable = 'Y';

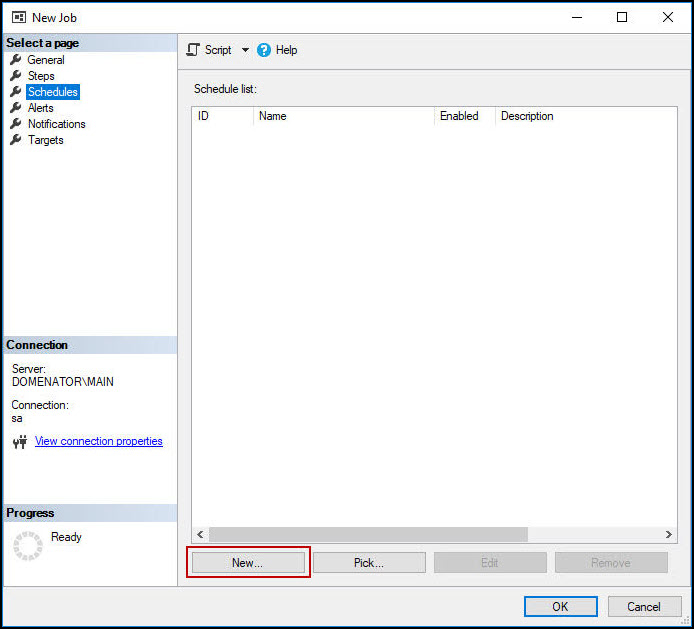

  • Select the Schedules tab, then click New…
New Job Step configuration

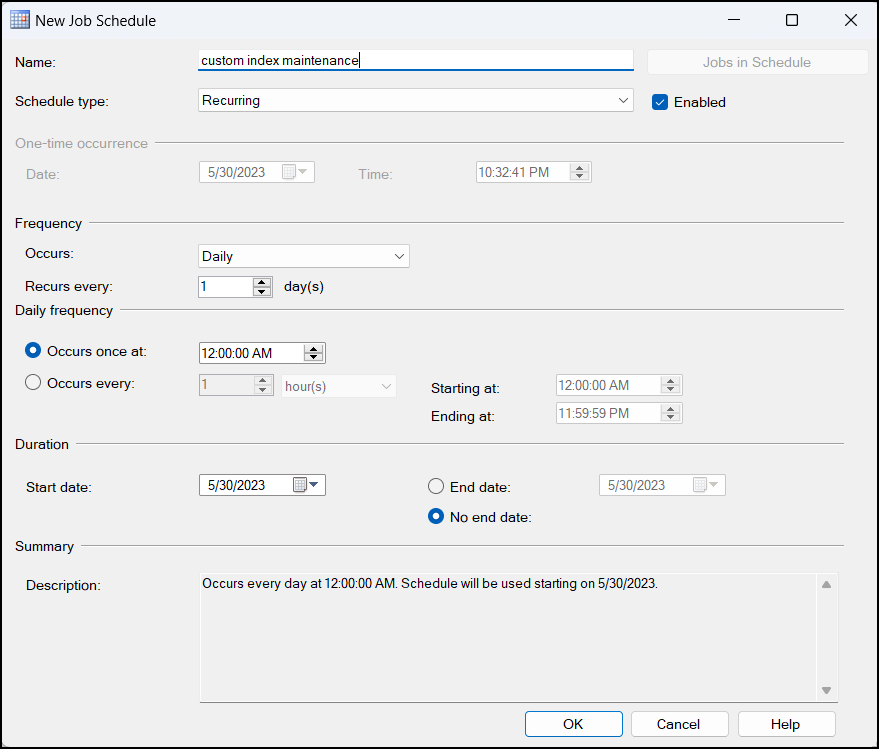

  • Enter a Name for the schedule and set the Frequency parameters. Then click OK to save the new schedule.
Job Schedules tab

Step 5: Check the operations run correctly​

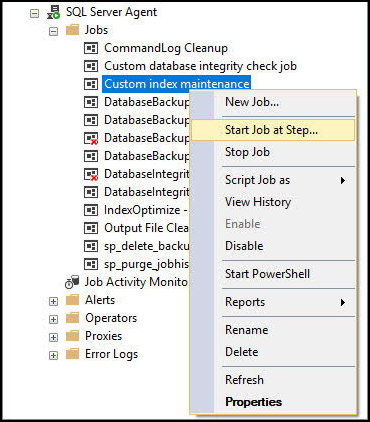

  • Locate the newly created job in the Object Explorer under the Jobs node. Right-click on the job and select Start Job at Step… from the context menu.
New Schedule configuration

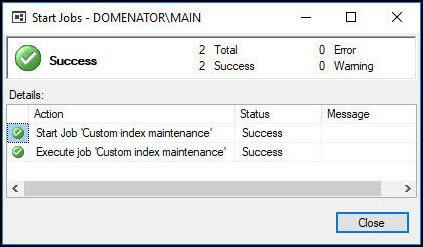

When the job is completed, a success message appears.

Start Job context menu
info

You can view the operations performed using the following query:

SELECT * FROM [DBAtools].[dbo].[CommandLog]
