availability

Package: Invicti AppSec Enterprise (on-premise, on-demand)

MobSF SAST

Invicti AppSec supports MobSF SAST (Mobile Security Framework) as a SAST (Static Application Security Testing) scanner. This guide explains how to activate and configure the MobSF SAST integration.

MobSF is an automated, all-in-one mobile application pen-testing, malware analysis, and security assessment framework. It supports Android, iOS, and Windows mobile applications.

Prerequisites

Before starting the integration, ensure you have the following information from your MobSF instance:

Field	Description	Required
Api Key	REST API key from your MobSF instance	Yes
URL	Your MobSF instance URL (e.g., https://mobsf.your-company.com)	Yes
Insecure	Skip SSL certificate verification (not recommended for production)	No

Get an Api Key (on MobSF Side)

1. Start your MobSF instance.
2. The REST API key is displayed in the console output when MobSF starts.
3. Alternatively, navigate to your MobSF instance URL and check the API Docs section (usually at /api_docs).
4. The API key is also available in the MobSF configuration file.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

Step 2: Select the SAST Tab

On the Integrations page, you will see the Scanners section with multiple tabs. Click on the SAST tab (it is selected by default).



Step 3: Find and Activate MobSF SAST

Scroll through the list of SAST scanners to find MobSF SAST.

• If MobSF SAST is not activated, you will see an "Activate" button. Click it to enable the integration.
• If MobSF SAST is already activated, you will see a toggle switch in the ON position and a "Deactivate" button, along with a gear icon for configuration.

info

MobSF SAST supports the Language agnostic category, covering Android, iOS, and Windows mobile applications.

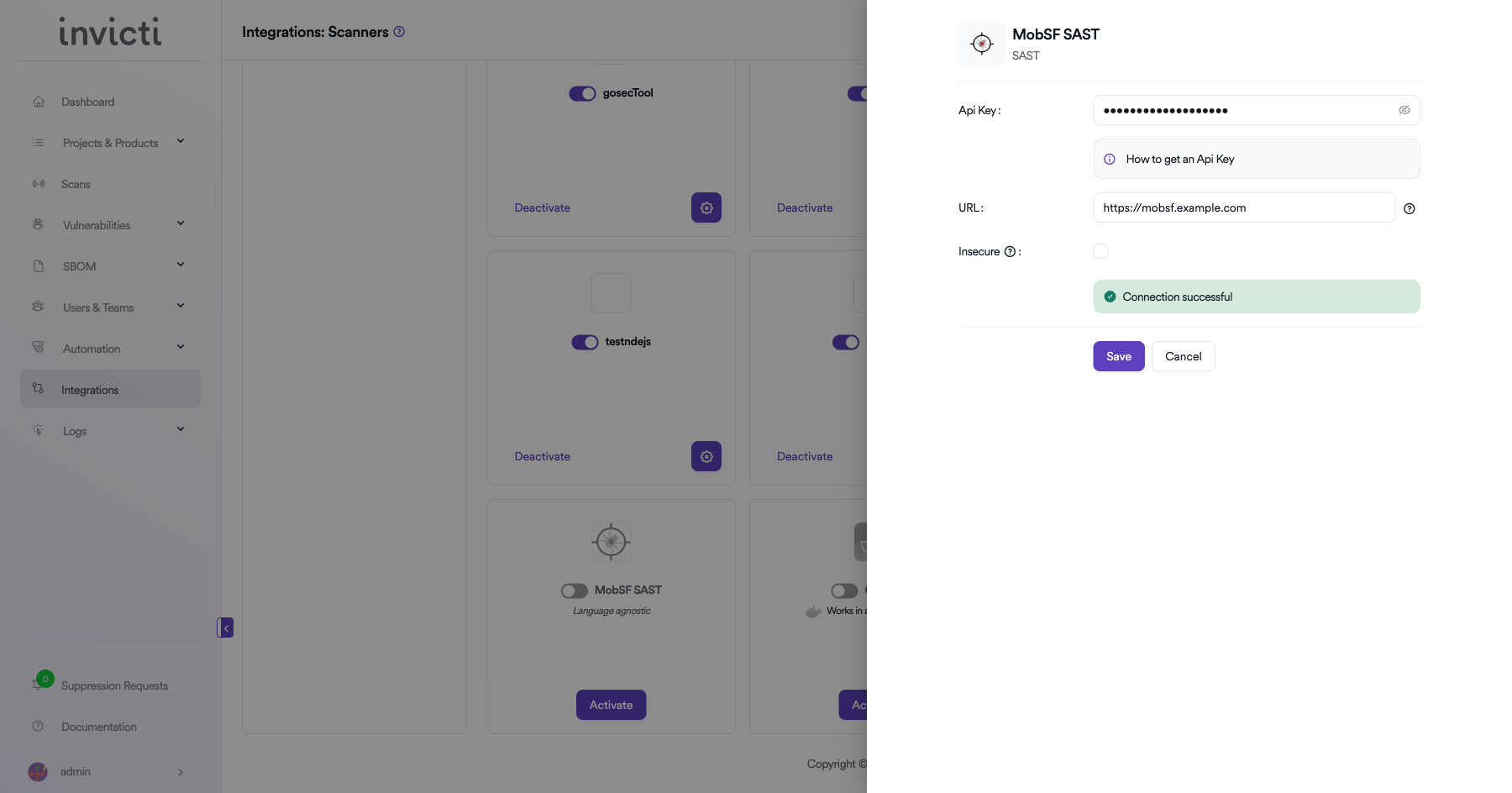

Step 4: Configure Connection Settings

Click on the gear icon on the MobSF SAST card to open the configuration panel. Fill in the required fields:

Field	Description	Required
Api Key	REST API key from your MobSF instance	Yes
URL	Your MobSF instance URL (e.g., https://mobsf.your-company.com)	Yes
Insecure	Enable this checkbox only if your MobSF instance uses a self-signed SSL certificate	No

Step 5: Test the Connection

Click the Test Connection button at the bottom of the configuration panel to verify that the provided credentials and URL are correct.

• If the connection is successful, the integration is ready to use.
• If the connection fails, verify your Api Key and URL values.
• For existing integrations, you can use the Retest Connection button at the top of the panel.

Step 6: Advanced Settings (Optional)

Click on Advanced Settings to expand additional options:

Setting	Description	Default
Allow team leads to scan this instance	Permits team leads to trigger scans using this MobSF instance	Off
Allow team leads to create new instances	Permits team leads to create additional MobSF instances	Off

After modifying advanced settings, click Save Advanced Settings to apply changes.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the SAST tab under Scanners
3	Find MobSF SAST and click Activate (if not already active)
4	Click the gear icon and fill in Api Key and URL
5	Click Test Connection to verify
6	(Optional) Configure Advanced Settings for team lead permissions

Create a Scan

After activating and configuring MobSF SAST, you can create scans from your project's scanner settings.

Navigate to Project Scanners

1. Go to your Project page.
2. Click on the Settings tab.
3. Select Scanners from the left sidebar.

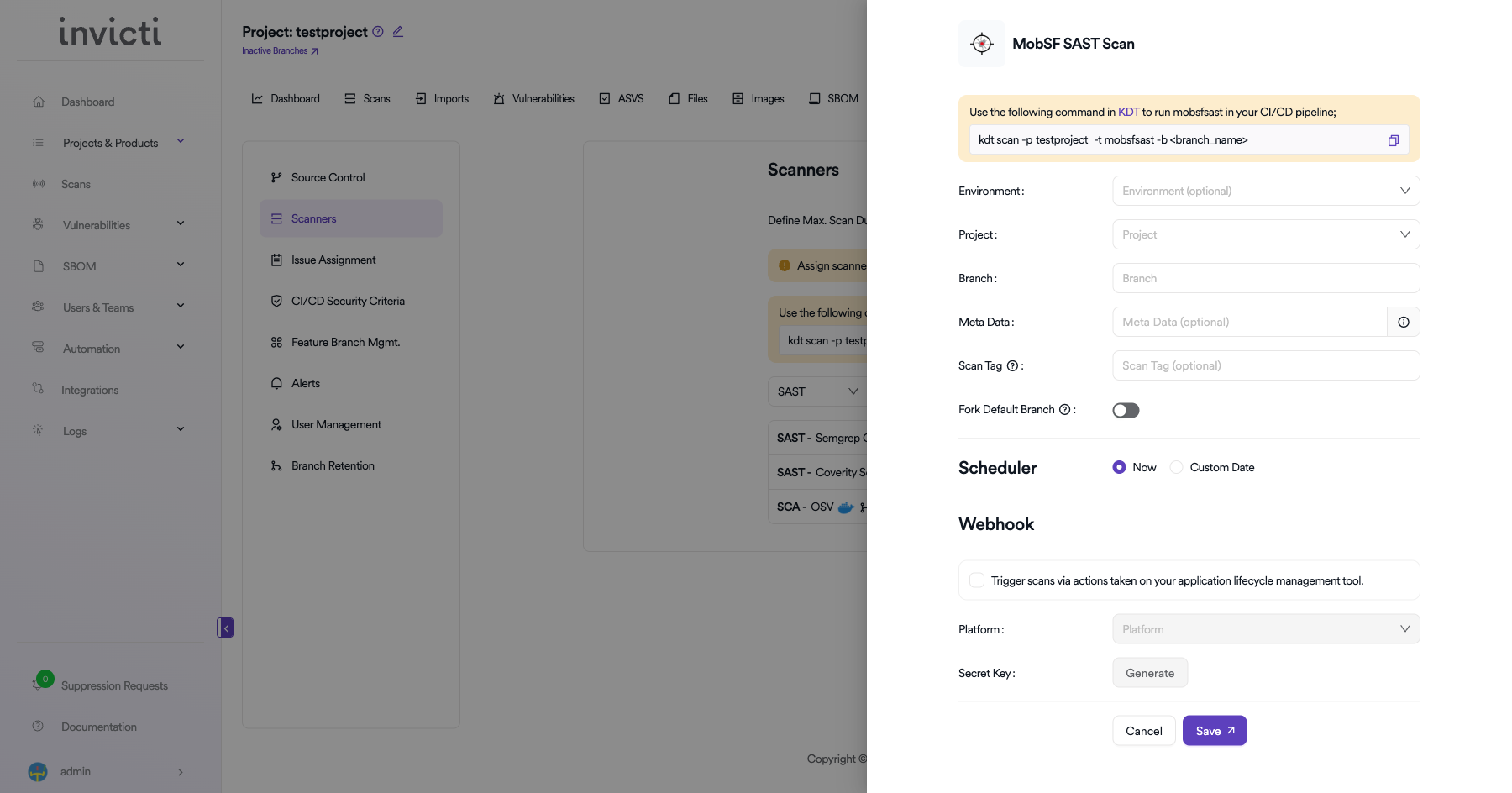

Add MobSF SAST Scanner

1. In the scanner type dropdown, select SAST.
2. In the scanner dropdown, search for and select MobSF SAST.
3. Click the Add button to open the scan configuration drawer.

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan (optional)	No
Branch	Specify the branch to scan	No
Meta Data	Additional metadata for the scan (optional)	No
Scan Tag	Tag to identify the scan (optional)	No
Fork Default Branch	Enable to fork the default branch before scanning	No

Scheduler

• Now: Run the scan immediately after saving.
• Custom Date: Schedule the scan for a specific date and time.

Webhook (Optional)

Enable webhook to trigger scans via actions taken on your application lifecycle management tool:

1. Check the Trigger scans via actions checkbox.
2. Select the Platform (e.g., GitHub, GitLab, Bitbucket).
3. Click Generate to create a Secret Key for webhook authentication.

KDT Command

You can also trigger MobSF SAST scans from your CI/CD pipeline using KDT:

kdt scan -p <project_name> -t mobsfsast -b <branch_name>

Click Save to create the scan configuration.

Troubleshooting

Connection Fails

• Invalid API Key: Verify the API key matches the one shown in MobSF's REST API documentation page.
• Incorrect URL: Ensure the URL includes the correct protocol and port (e.g., http://localhost:8000 for local or your server URL).
• MobSF Not Running: Verify that the MobSF server is running and accessible from the Invicti AppSec instance.
• Network/Firewall: Ensure the Invicti AppSec instance can reach the MobSF server. Check firewall rules and network connectivity.

Scan Issues

• Scan Not Starting: Verify the MobSF server has sufficient resources (CPU, memory) to process the scan.
• Unsupported File Type: Ensure the uploaded file is a supported format (APK, IPA, or source code archive).

Best Practices

• Secure MobSF Instance: Use HTTPS and strong authentication for the MobSF server, especially in production environments.
• Dedicated MobSF Server: Use a dedicated MobSF instance for the Invicti AppSec integration to avoid conflicts with other users.
• Regular Updates: Keep MobSF updated to the latest version for improved detection capabilities and security fixes.
• Resource Planning: Ensure the MobSF server has adequate resources for concurrent scan requests.

Limitations

• Self-Hosted Only: MobSF requires a self-hosted server. There is no cloud-hosted MobSF service.
• Mobile Focus: MobSF SAST is designed for mobile application analysis (Android and iOS).
• Network Dependency: The Invicti AppSec instance must have direct network access to the MobSF server.

---
