Integrating Invicti Enterprise with Redmine
Redmine is an issue tracking system that is part of a larger, flexible project management web application. It is free and open source, cross-platform and cross-database. Redmine is written using the Ruby on Rails framework.
This document explains how to configure Invicti Enterprise to send a detected vulnerability to Redmine.
For further information, see What Systems Does Invicti Integrate With?.
Redmine Fields

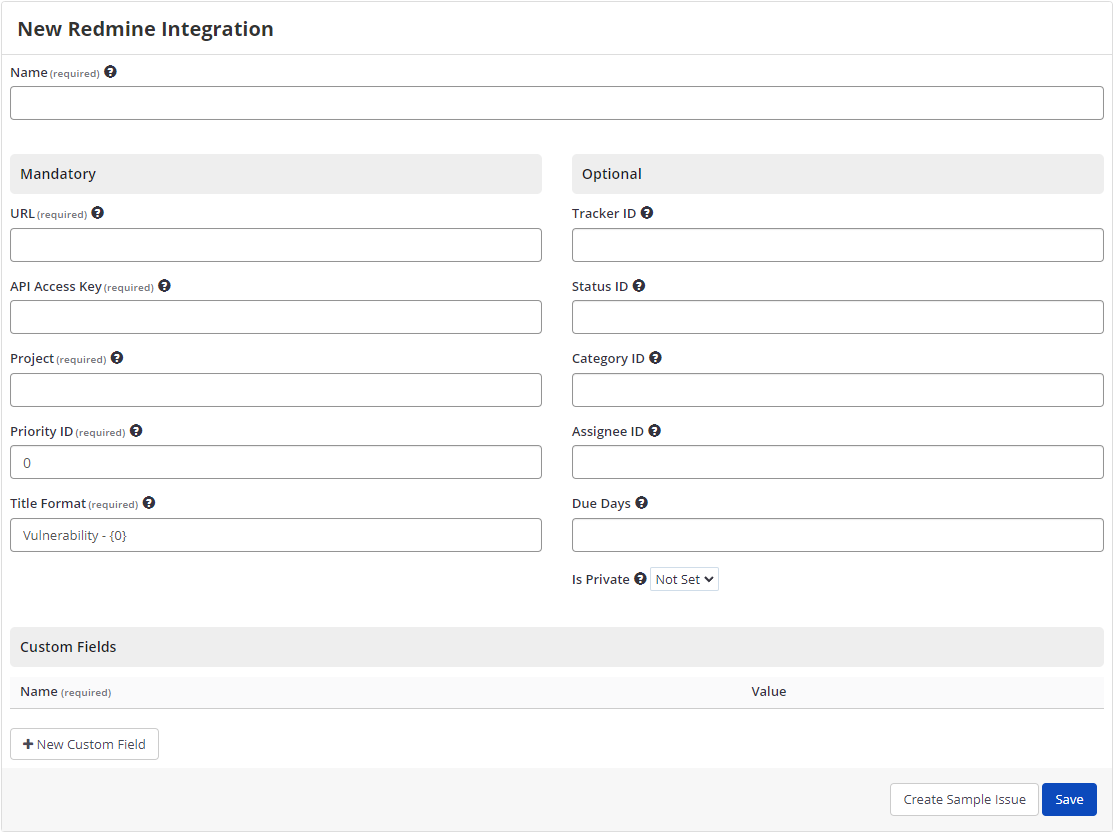

This table lists and explains the Redmine fields in the New Redmine Integration window.
| Button/Section/Field | Description |
|---|---|
| Name | This is the name of the configuration that will be shown elsewhere |
| Mandatory | This section contains fields that must be completed |
| URL | This is the Redmine instance URL |
| Api Access Key | This is the API Access Key for authentication |
| Project | This is the project identifier in which to create an issue |
| Priority Id | This is the priority identifier |
| Title Format | This is the string format that is used to create the vulnerability title |
| Optional | This section contains optional fields |
| Tracker Id | This is the tracker identifier |
| Status Id | This is the status identifier |
| Category Id | This is the category identifier |
| Assignee Id | This is the assignee identifier |
| Due Days | This is the number of days between the date the issue was created to the date it's due |
| Is Private | This indicates whether the issue is accessible only to the assignee |
| Custom Fields | This section contains user-defined custom fields |
| New Custom Field | Select to create a new custom field |
| Name | Enter a name for the new custom field |
| Value | Enter a value for the new custom field |
| Dropdown | Select the drop-down to change the input type. The options are: Text, Password, Textarea, File upload, Complex |
| Create Sample Issue | Once all relevant fields have been configured, select to create a sample issue |
How to Integrate Invicti Enterprise with Redmine
-
Log in to Invicti Enterprise.
-
From the main menu, select Integrations > New Integration.
-
From the Issue Tracking Systems section, select Redmine.
-
In the Name field, enter a name for the integration.
-
In the Mandatory section, complete the connection details:
- Name (The name must be unique)
- URL (Redmine Server)
- Api Access Key
- Project
- Priority Id
- Title Format
-
Open Redmine.
-
From the main menu, select Projects, then select the relevant project from the list.
-

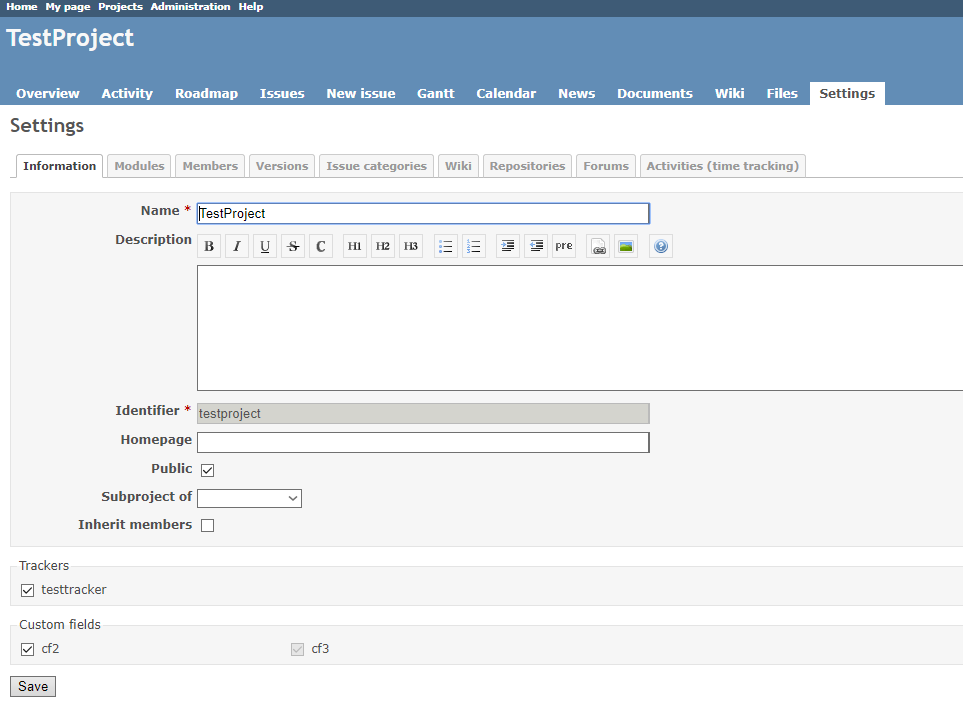

Select Settings, then Information. The Information tab is displayed, showing the Identifier.
- Copy the Identifier value from Redmine and paste it into Project field in Invicti Enterprise.

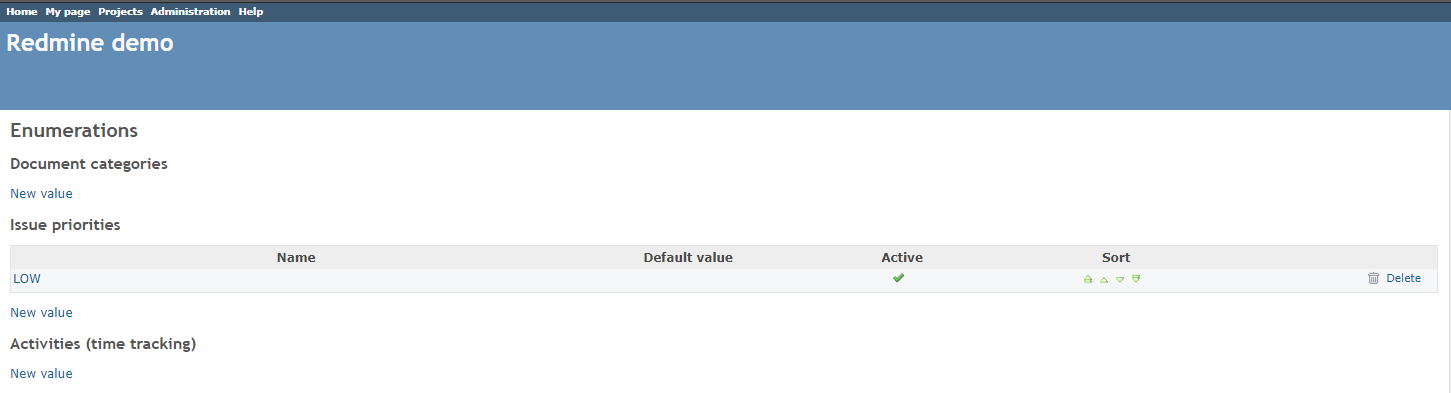

- In Redmine, select Administration, then Enumerations. The Enumerations window is displayed.
- Select the priority name to find the Identifier value displayed in the URL in the browser bar. Then copy the value and paste into the Priority field in Invicti Enterprise.
- Copy the Priority value from Redmine and paste it into the Priority field Invicti Enterprise.

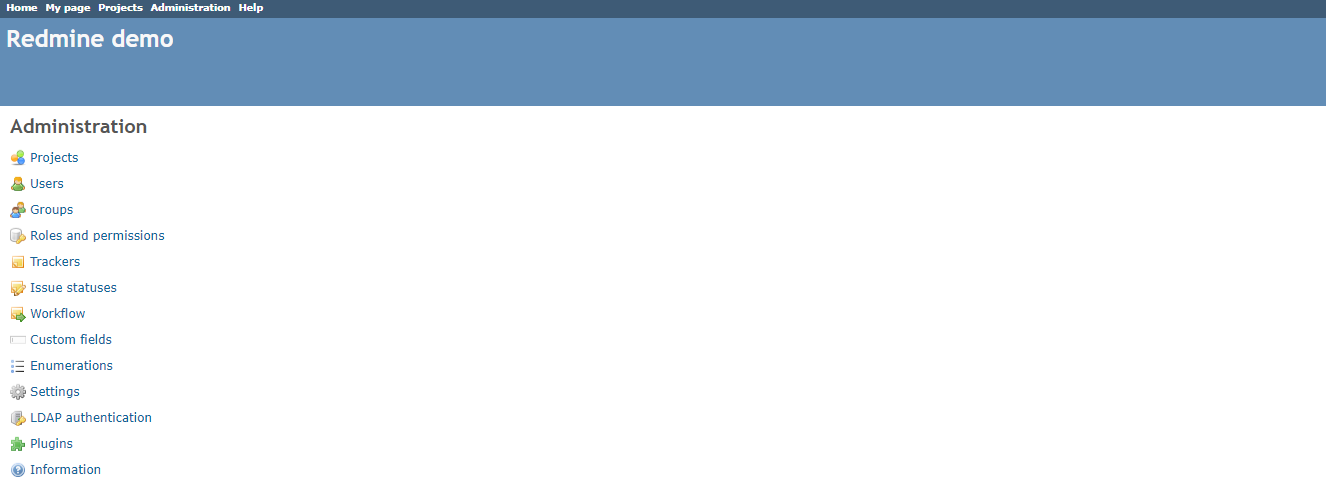

- In Redmine, select Administration. The Administration window is displayed.
- Copy the values from the Tracker ID and Status ID fields.
- In Invicti Enterprise, in the Optional section, paste the values into the Tracker ID and Status ID fields.

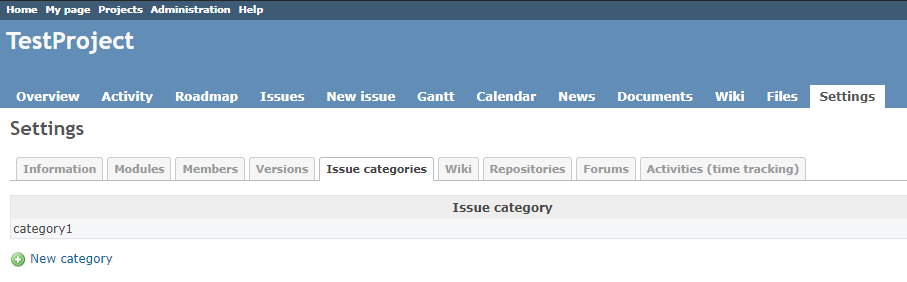

- In Redmine, select Settings, then Edit for a category. The Category identifier is displayed as the URL in the browser's address bar. (The Category ID is the URL.)
-
Copy the Category ID value.
-
In Invicti Enterprise, in the Optional section, paste the value into the Category ID field.
-
Complete the Assignee ID, Due Days and Is Private fields.
-
If required, select New Custom Field. Two fields are displayed: Name and Value.
-
In the Name field, enter a name for the value containing the custom field identifier.
-
In the Value field, enter a value for the new custom field identifier.
-
Select Create Sample Issue to confirm that Invicti Enterprise can connect to the configured system and create a sample issue. A confirmation message is displayed to confirm that the sample issue has been successfully created.
-
In the confirmation message, select the Issue number link to open the issue in your default browser.
-
If Redmine integration is not configured correctly, Invicti Enterprise will correctly route the following descriptive error messages to you. Sample error messages may be displayed as illustrated:
- If the URL or API Access Key was entered incorrectly
- If the Priority was entered incorrectly
- Select Save to save the integration.
How to Export Reported Vulnerabilities to Projects in Redmine
There are several ways to send issues to Redmine with Invicti Enterprise:
Automatic Notification Configuration
Once notifications have been configured, you can configure Invicti Enterprise to automatically send vulnerabilities after scanning has been completed (see How to Configure a Notification to Report Vulnerabilities to an Issue Tracking System).
Send from Issues Page
You can send one or more issues from the Issues window:
- You must have Manage Issue permission.
- From the main menu, select Issues, then All Issues.
- From the Issues page, select one or more issues you want to send.
- Select Send To > Redmine.
A pop-up is displayed, with a link to the issue you have sent to Redmine. If there is an error, this information will be displayed instead.
Send from Recent Scans Page
You can send an issue from the Recent Scans window:
- From the main menu, select Scans > Recent Scans.
- Next to the relevant scan, select Report.
- Scroll down to the Technical Report section.
- From the list of detected vulnerabilities, select an issue and display its details.
- Select Send To > Redmine.
If you have previously submitted this vulnerability to Redmine, it will already be accessible. You cannot submit the same issue twice.
View Issues in Redmine

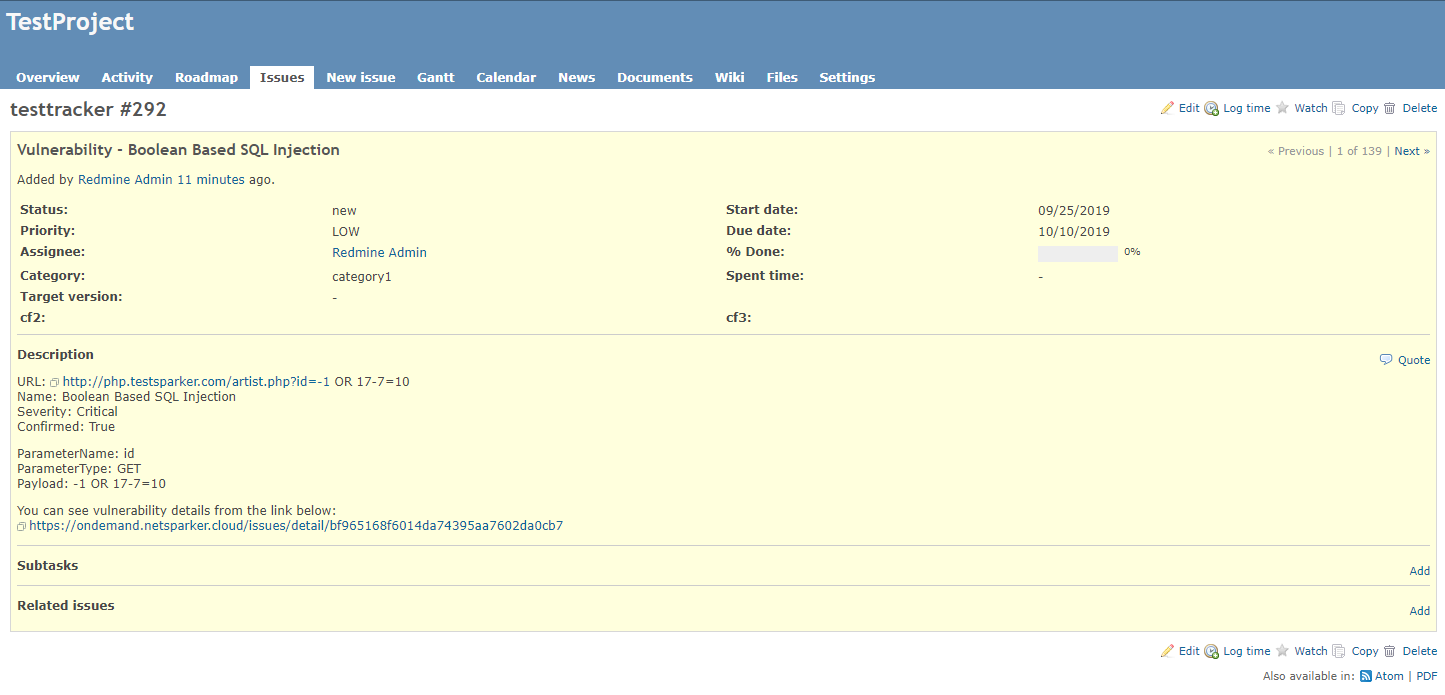

If you view opened problem logs in Redmine, they look like this.
