availability

Package: Invicti AppSec Enterprise (on-premise, on-demand)

Checkmarx One SCA integration

Checkmarx One SCA (Software Composition Analysis) is the SCA module within the Checkmarx One unified AppSec platform. It scans open-source dependencies across your repositories to detect known vulnerabilities and license risks. The Invicti AppSec integration connects to Checkmarx One via API and retrieves completed SCA scan results.

Prerequisites

Field	Description
Token	A Checkmarx One API key used as a refresh token for authentication (labeled Token in the UI)
Tenant Name	Your Checkmarx One tenant name
Checkmarx One IAM URL	The IAM endpoint URL for your Checkmarx One tenant (e.g., https://eu.iam.checkmarx.net)

Get an API Key (on Checkmarx One Side)

1. Log in to your Checkmarx One instance.
2. Click your profile icon in the upper right corner and go to My Profile.
3. Navigate to the API Keys section.
4. Click Generate API Key and provide a name.
5. Copy the generated API key immediately — it will not be shown again.

note

The API key is used as a refresh token when authenticating. Ensure the associated user has at minimum SCA Viewer or SCA Reviewer permissions on the relevant projects.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

Step 2: Select the SCA Tab

On the Integrations > Scanners page, click on the SCA tab.

Step 3: Find and Activate Checkmarx One SCA

Scroll through the list of SCA scanners to find Checkmarx One SCA.

• If Checkmarx One SCA is not activated, click the Activate button to enable the integration.

note

The scan method badges on the Checkmarx One SCA card include Bind and KDT.

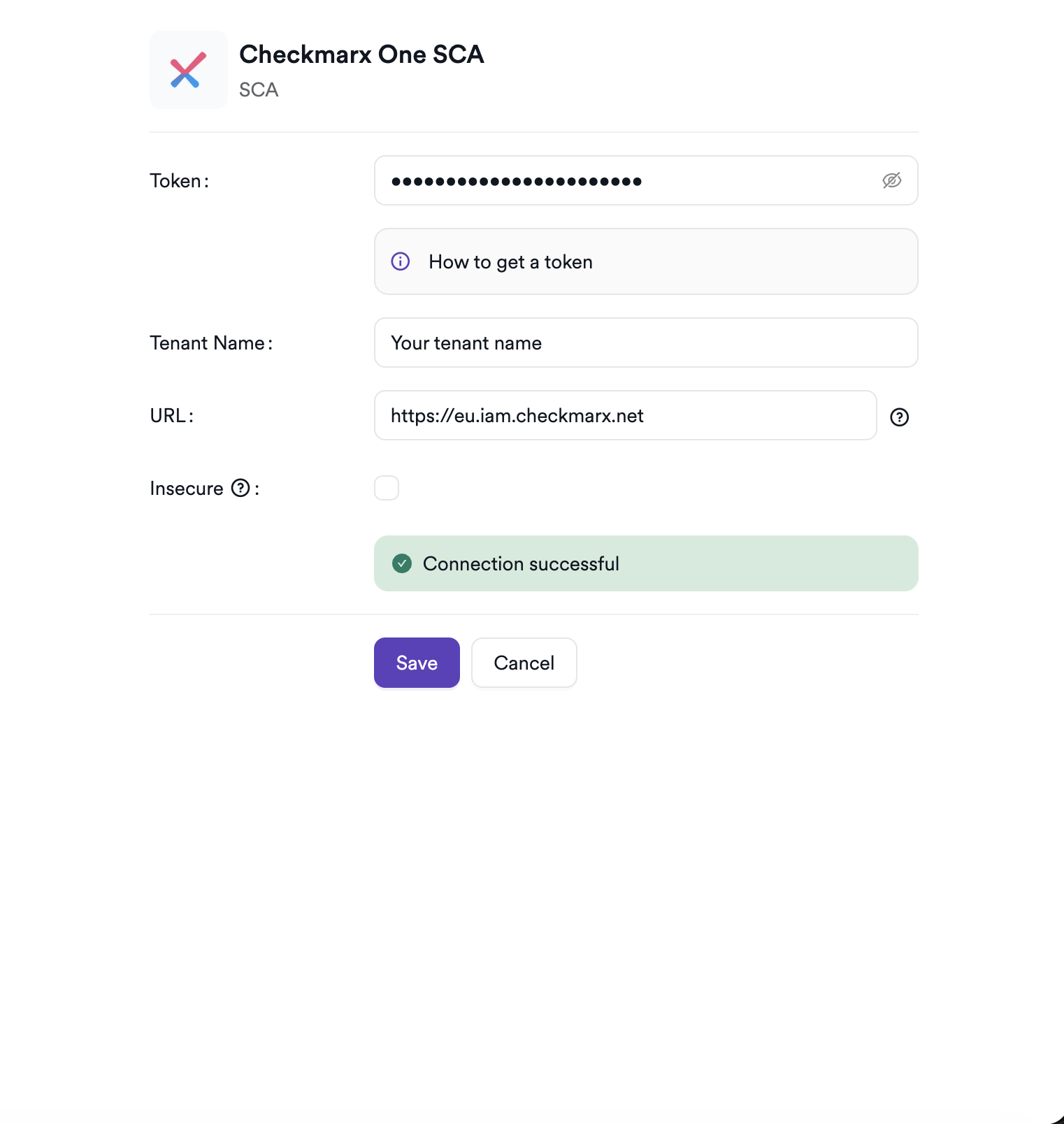

Step 4: Configure Connection Settings

Click the gear icon on the Checkmarx One SCA card to open the settings panel. Fill in the required fields:

Field	Description	Required
Token	Your Checkmarx One API key (used as a refresh token for authentication)	Yes
Tenant Name	Your Checkmarx One tenant name	Yes
URL	Checkmarx One IAM URL for your region (e.g., https://eu.iam.checkmarx.net)	Yes
Insecure	Enable only if your instance uses a self-signed SSL certificate	No

Regional IAM URL examples:

• US: https://iam.checkmarx.net
• EU: https://eu.iam.checkmarx.net
• Australia & New Zealand: https://anz.iam.checkmarx.net
• India: https://ind.iam.checkmarx.net
• Singapore: https://sng.iam.checkmarx.net

note

The integration automatically converts the IAM URL to the corresponding AST API URL internally (e.g., https://eu.iam.checkmarx.net → https://eu.ast.checkmarx.net). You only need to provide the IAM URL.

Step 5: Test the Connection

Click Test Connection. A green Connection successful message confirms that Invicti AppSec can authenticate with your Checkmarx One tenant.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the SCA tab
3	Activate Checkmarx One SCA
4	Enter URL, API Key, and Tenant Name
5	Test the connection

Create a Scan

Navigate to Project Scanners

1. Open a project in Invicti AppSec.
2. Go to Settings > Scanners.
3. Click Add Scanner.

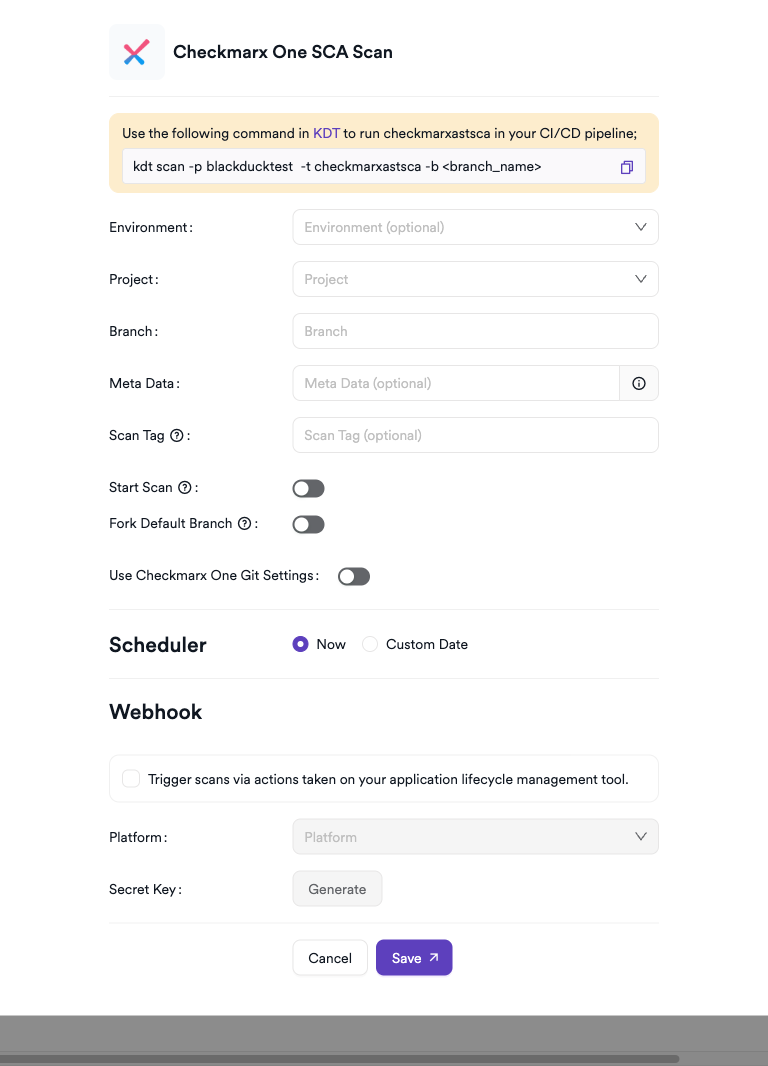

Add Checkmarx One SCA Scanner

1. Select SCA as the scanner type.
2. Choose Checkmarx One SCA from the scanner list.
3. Click Add to open the scan configuration drawer.

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan	No
Project	Select the Checkmarx One project (loaded from your tenant)	Yes
Start Scan	Enable to trigger a new SCA scan in Checkmarx One on every run	No
Use Checkmarx Settings	When enabled, skips local clone and uses Checkmarx One's pre-configured Git settings	No
Branch	Source code branch associated with this scan	Yes
Meta Data	Additional metadata for the scan	No
Scan Tag	Tag to identify the scan	No

tip

When Start Scan is disabled, Invicti AppSec retrieves the latest completed scan from Checkmarx One without triggering a new one. Enable Start Scan for CI/CD pipeline integrations.

Scheduler

Enable the Scheduler toggle to run Checkmarx One SCA scans on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan completion notifications.

KDT Command

kdt scan -p <project_name> -t checkmarxastsca -b <branch_name>

Troubleshooting

Connection Fails

Issue	Resolution
Invalid API Key	Ensure the API key has not expired and belongs to a user with SCA access. Regenerate if needed.
Tenant not found	Verify the tenant name is entered exactly as it appears in your Checkmarx One account settings.
Wrong IAM URL	Use the IAM URL that matches your region (e.g., https://eu.iam.checkmarx.net for EU). The integration converts it to the AST API URL automatically.
401 Unauthorized	The API key may have insufficient permissions. Ensure the user has at minimum SCA Viewer access.

Scan Issues

Issue	Resolution
Project not found	Verify the project name or ID in Checkmarx One. Use the project ID (UUID format) for more reliable lookups.
No completed scans	If Start Scan is disabled, ensure at least one completed SCA scan exists in Checkmarx One for the specified branch.
Empty results	The project may have no open-source dependencies or the last scan returned no vulnerabilities.
Clone fails	Ensure the project has a repository configured in Invicti AppSec, or enable Use Checkmarx Git Config to delegate cloning to Checkmarx One.

Best Practices

• Use a dedicated service account API key instead of a personal key to prevent disruption when team members leave.
• When using CI/CD pipelines, enable Start Scan and use the KDT command to trigger scans programmatically.
• Prefer using the project ID (UUID) in the scan configuration instead of the name to avoid issues with duplicate project names.
• Enable Use Checkmarx Git Config if your repository is already configured in Checkmarx One to avoid maintaining separate Git credentials.
• Rotate the API key periodically and update the integration settings accordingly.

Limitations

• Invicti AppSec only retrieves SCA-type findings (sca and sca-container); SAST, KICS, and other result types from the same scan are excluded.
• The integration does not support triggering SCA-only scans via the API when Start Scan is enabled — it triggers a full Checkmarx One scan, which may include SAST and KICS depending on your project configuration.
• A maximum of 1,000 SCA results per scan are retrieved from the API due to pagination constraints in Checkmarx One.
• Checkmarx One SCA does not support listing projects via the API in this integration; the project name or ID must be manually entered.

---
