OWASP ZAP Headless DAST/API Integration

OWASP ZAP Headless is the daemon mode variant of OWASP ZAP, designed for automated CI/CD pipeline integration. It runs without a graphical interface, making it suitable for headless server environments. In Invicti AppSec, ZAP Headless runs as an agent-based or KDT-managed scanner.

caution

OWASP ZAP Headless is an Agent/KDT-based scanner. It does not require connection to an external service. Scans are executed by the Invicti agent installed in your environment or via KDT.

Prerequisites

Requirement	Description
Invicti Agent	An Invicti AppSec agent must be installed and running in the target environment
Target URL	The web application URL that the agent can reach and scan
Docker	Docker must be installed on the agent host (ZAP Headless runs as a Docker container)

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

Step 2: Select the DAST/API Tab

On the Integrations > Scanners page, click on the DAST/API tab.

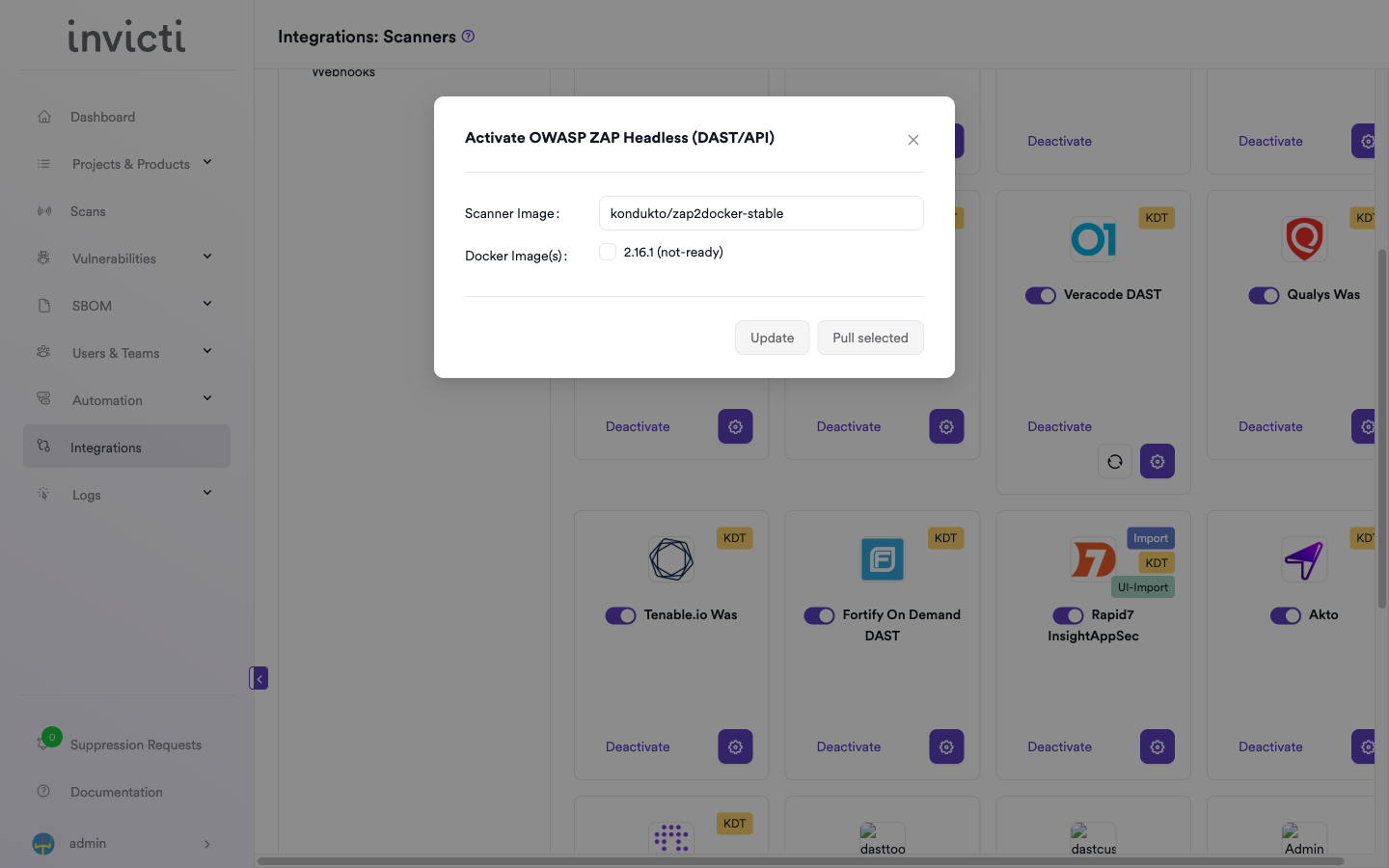

Step 3: Find and Activate OWASP ZAP Headless

Scroll through the list of DAST/API scanners to find OWASP ZAP Headless.

• If OWASP ZAP Headless is not activated, you will see an "Activate" button. Click it to enable the integration.

note

The scan method badge on the OWASP ZAP Headless card shows KDT. No external API credentials or server connection are required. Scans are executed directly by the Invicti agent installed in your environment or via KDT.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the DAST/API tab
3	Activate OWASP ZAP Headless (no credentials needed)

Create a Scan

Navigate to Project Scanners

1. Open a project in Invicti AppSec.
2. Go to Settings > Scanners.
3. Click Add Scanner.

Add OWASP ZAP Headless Scanner

1. Select DAST/API as the scanner type.
2. Choose OWASP ZAP Headless from the scanner list.
3. Click Add to open the scan configuration drawer.

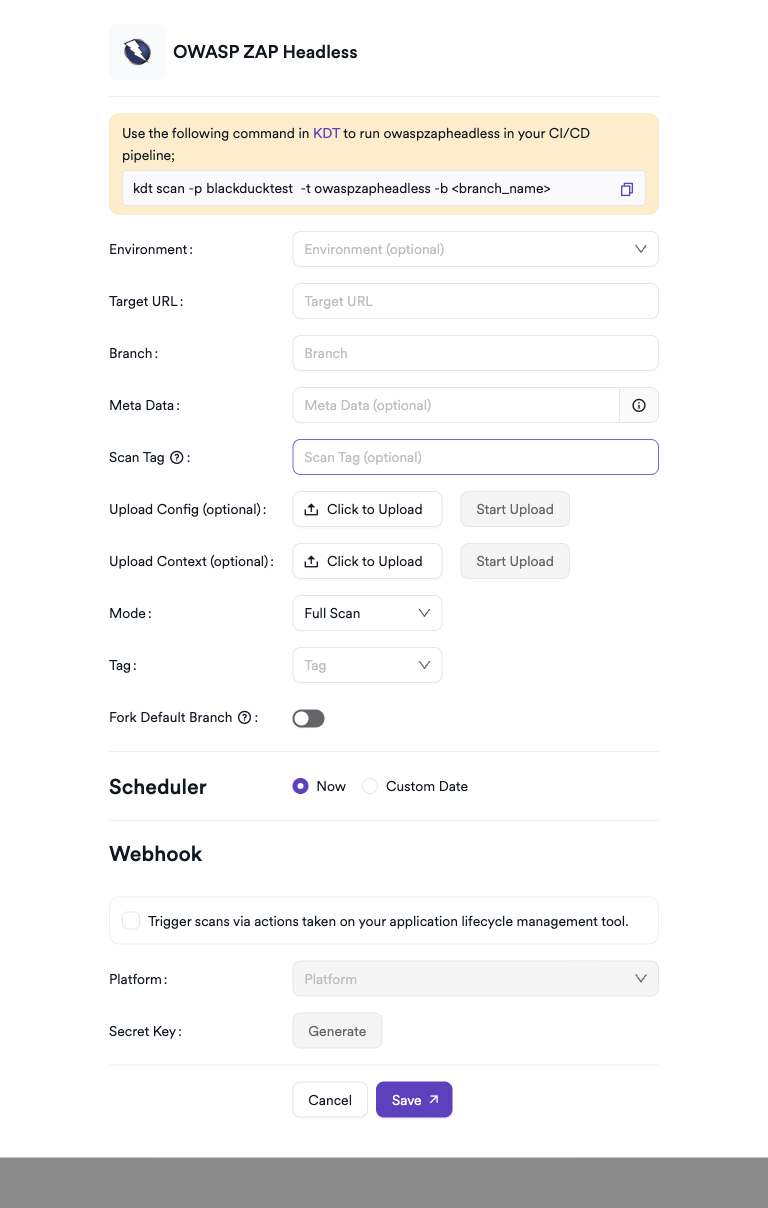

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan	No
Target URL	Web application URL to scan	Yes
Mode	Scan mode: Full, Baseline, or API	No
Upload Config	Optional ZAP configuration file	No
Upload Context	Optional ZAP context file	No
Tag	ZAP Docker image tag to use (e.g., latest, v2.14.0)	Yes
Branch	Source code branch associated with this scan	No
Meta Data	Additional metadata for the scan	No
Scan Tag	Tag to identify the scan	No

Scheduler

Enable the Scheduler toggle to run scans on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan completion notifications.

KDT Command

kdt scan -p <project_name> -t zapheadless -b <branch_name>

Troubleshooting

Scan Issues

Issue	Resolution
Agent not available	Ensure the Invicti agent is installed, running, and connected
Docker not found	Install Docker on the agent host and ensure the daemon is running
Target not reachable	Verify the target URL is accessible from the agent host
Image pull failed	Check internet access from the agent host to Docker Hub
API scan incomplete	Verify the OpenAPI/Swagger spec URL is valid and accessible from the agent
Scan timeout	Reduce the scan scope or increase the timeout setting

Best Practices

• Use ZAP Headless for CI/CD pipeline automation where no GUI access is needed.
• Provide an OpenAPI or Swagger specification to enable targeted API security testing.
• Pin to a specific ZAP Docker image version for consistent, reproducible scan results.
• Use Baseline scan mode in pull request pipelines for fast feedback.
• Reserve Full scan mode for nightly or weekly scheduled scans.
• Combine with a SAST scanner for comprehensive security coverage.

Limitations

• ZAP Headless requires Docker to be installed on the agent host.
• The target application must be reachable from the agent host network.
• Headless mode has limited interaction with complex JavaScript-heavy single-page applications.
• Authenticated scan configuration requires scripting and must be set up separately.
• Results may include false positives; manual triage is recommended for production findings.

---
