Integrating Invicti Standard with Microsoft Teams

This document is for:

Invicti Standard

Microsoft Teams is a unified communications platform that combines team messaging and calling, video scheduling and meetings, file storage and collaboration, and an education forum. It integrates with Office 365 and has extensions to integrate with non-Microsoft products too.

This document explains how to configure Invicti Standard to send a detected vulnerability to Microsoft Teams for enhanced team collaboration and security awareness.

info

For further information, see Configuring the User Interface for Custom Send To Actions in Invicti Standard and Configuring Auto Send To Actions in Invicti Standard and What Systems Does Invicti Integrate With? external documentation.

Microsoft Teams Fields

The table lists and describes the Microsoft Teams fields in the Send To Actions tab.

Button/Section/Field	Description
Add	Click to add an integration.
Delete	Click to delete the integration and clear all fields.
Configure Send To	Click to configure the integration using the Settings Wizard instead of doing it manually.
Create Sample Issue	Once all relevant fields have been configured, click to create a sample issue.
Action	This section contains general fields about the Send To Action.
Display Name	This is the name of the configuration that will be shown on menus.
Mandatory	This section contains fields that must be completed.
Webhook URL	The Webhook URL to which issues should be sent.
Vulnerability	This section contains fields with vulnerability details.
Body Template	This is the template file to be used while rendering issue contents.
Title Format	This is the string to be used while formatting the vulnerability title.
Optional	This section contains optional fields.
Theme Color	This is the color of the message card.

How to Integrate Invicti Standard with Microsoft Teams

Follow these steps to configure the Microsoft Teams integration in Invicti Standard:

1. Open Invicti Standard.
2. From the Home tab on the ribbon, click Options. The Options dialog is displayed.

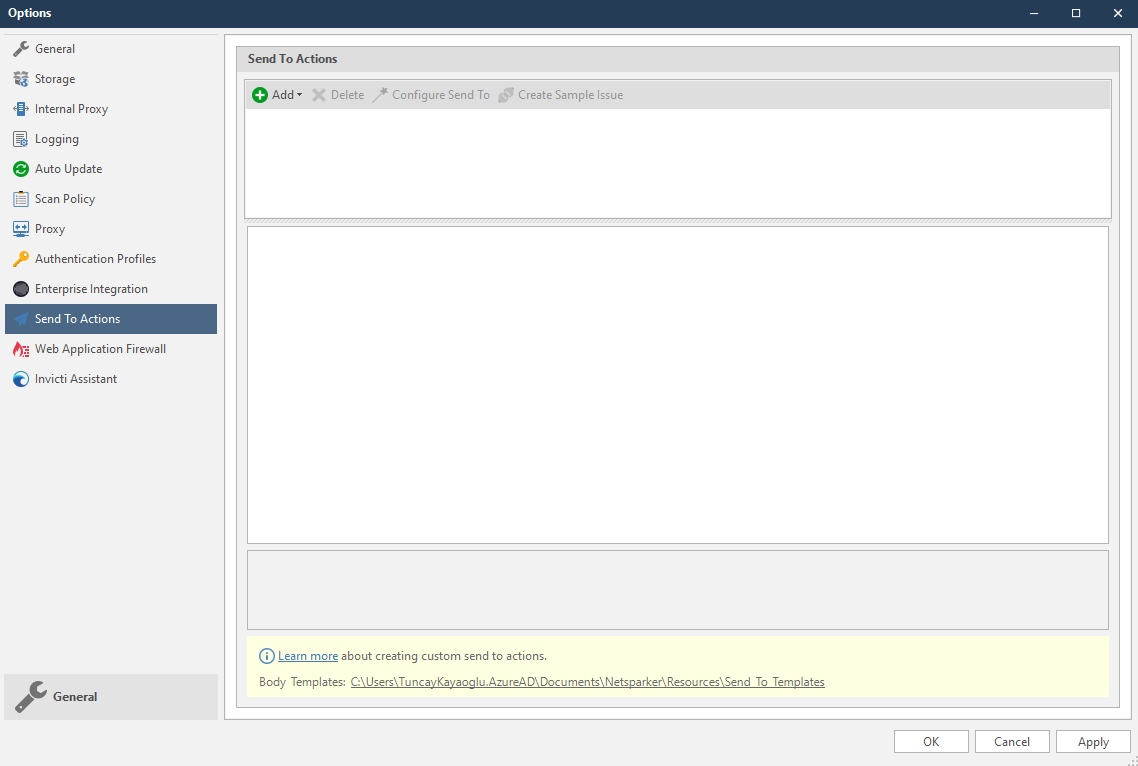

3. Click Send To Actions.

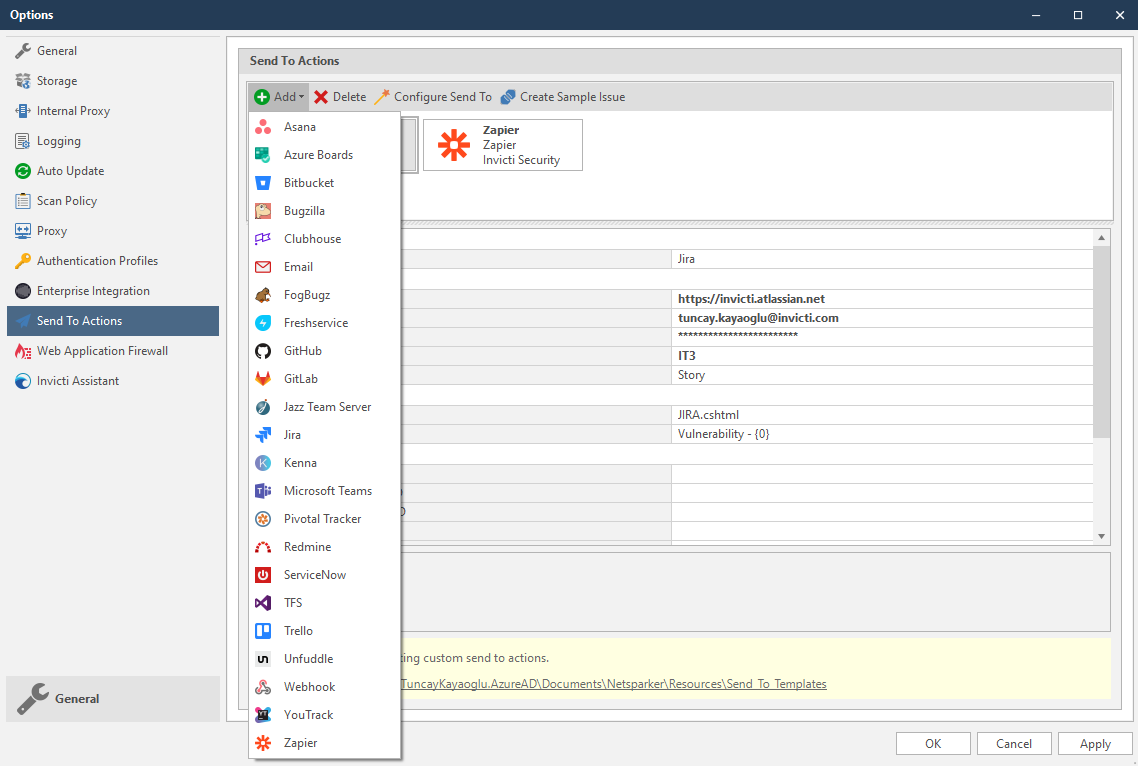

4. From the Add dropdown, select Microsoft Teams.

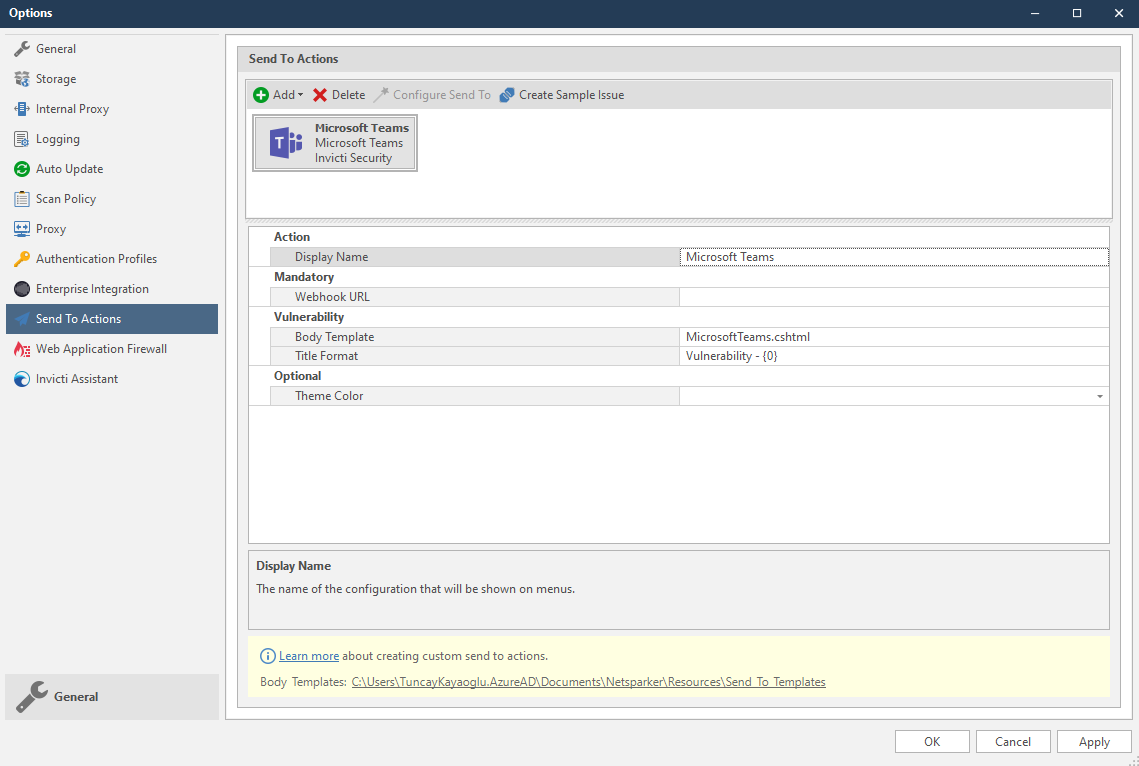

The Microsoft Teams fields are displayed.

5. In the Mandatory section, complete the connection details (see How to Configure a Webhook in Microsoft Teams for Invicti Standard):

   • Webhook URL

6. In the Vulnerability section you can specify the Body Template and Title Format.

note

Body templates are stored in %userprofile%\Documents\Invicti\Resources\Send To Templates. If you use your own custom templates, store them in this location.

7. In the Optional settings you can specify:

   • Theme Color

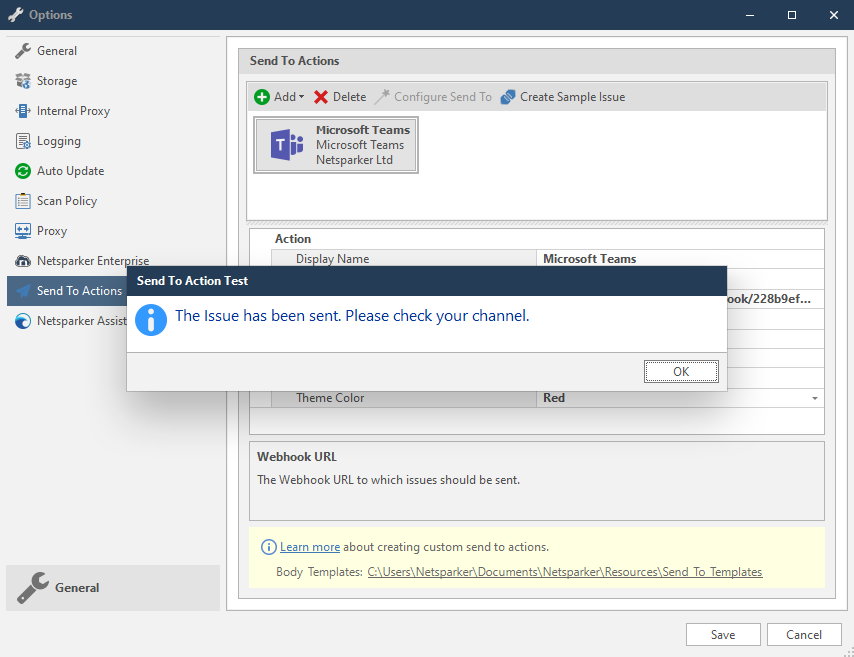

8. Click Create Sample Issue to confirm that Invicti Standard can connect to the configured system and create a sample issue. The Send To Action Test dialog is displayed to show if the sample issue is successfully created.

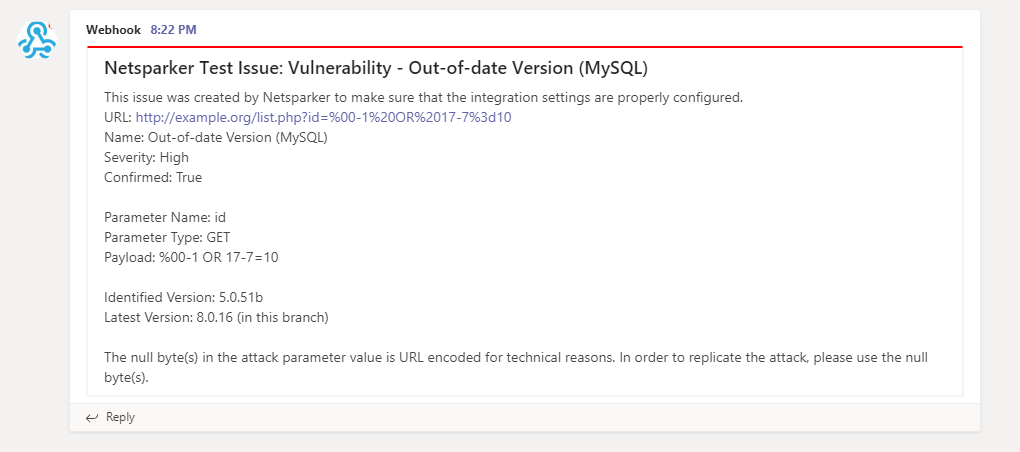

9. The message will be displayed in Microsoft Teams.

How to Export Reported Vulnerabilities to Projects in Microsoft Teams

1. Open Invicti Standard.
2. From the ribbon, select the File tab. Local Scans are displayed. Double-click the relevant scan to display its results.

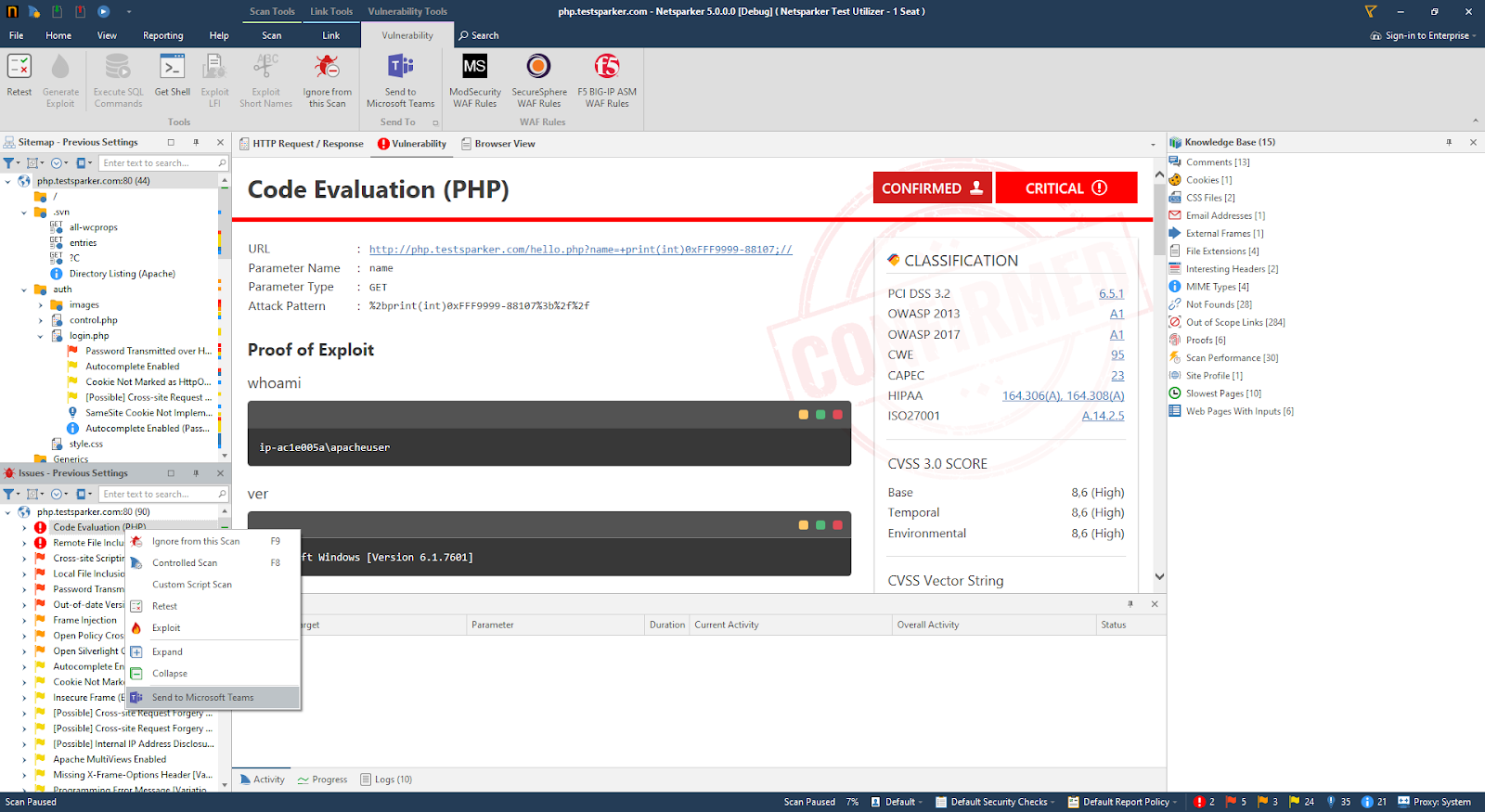

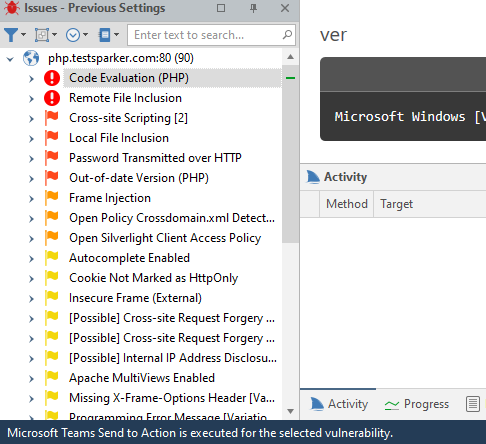

3. In the Issues panel, right click the vulnerability you want to export to Microsoft Teams and select Send to Microsoft Teams. (Alternatively, click the Send to Microsoft Teams button in the Vulnerability tab on the ribbon menu.)

4. Click the Microsoft Teams Send to Action is executed for the selected vulnerability link to see the created issue in Microsoft Teams.

5. The vulnerability is now automatically exported to Microsoft Teams. You can view it as a Microsoft Teams card.

How to Configure a Webhook in Microsoft Teams for Invicti Standard

1. Login the Microsoft Teams

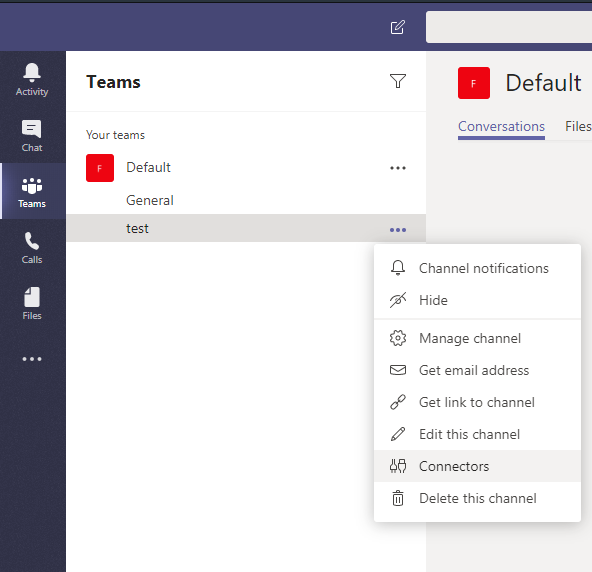

2. Right click your team, and click Connectors.

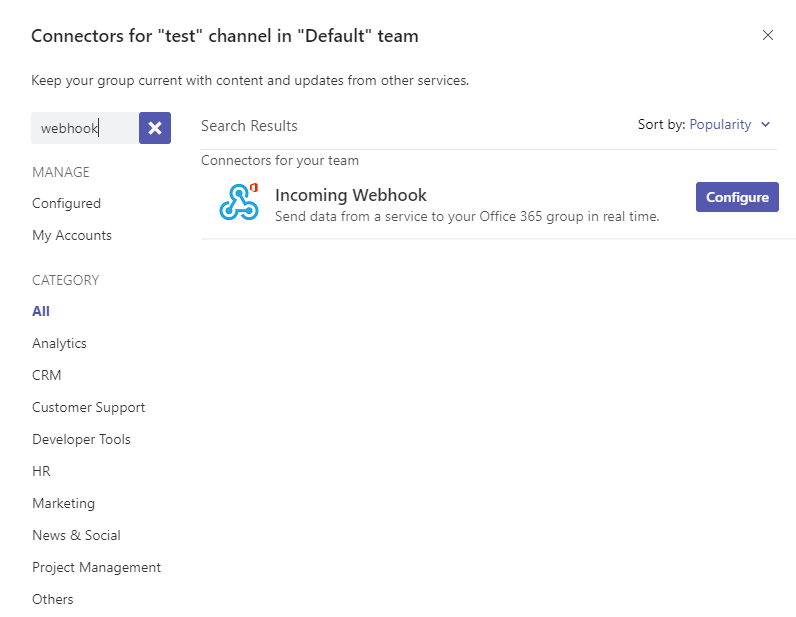

3. Find Incoming Webhook and click Configure.

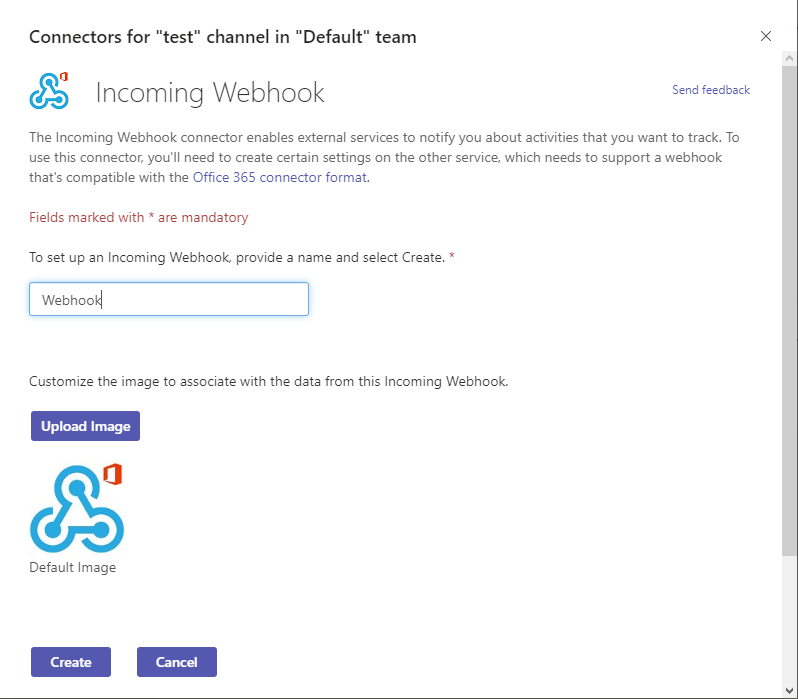

4. Enter a name for the webhook and click Create.

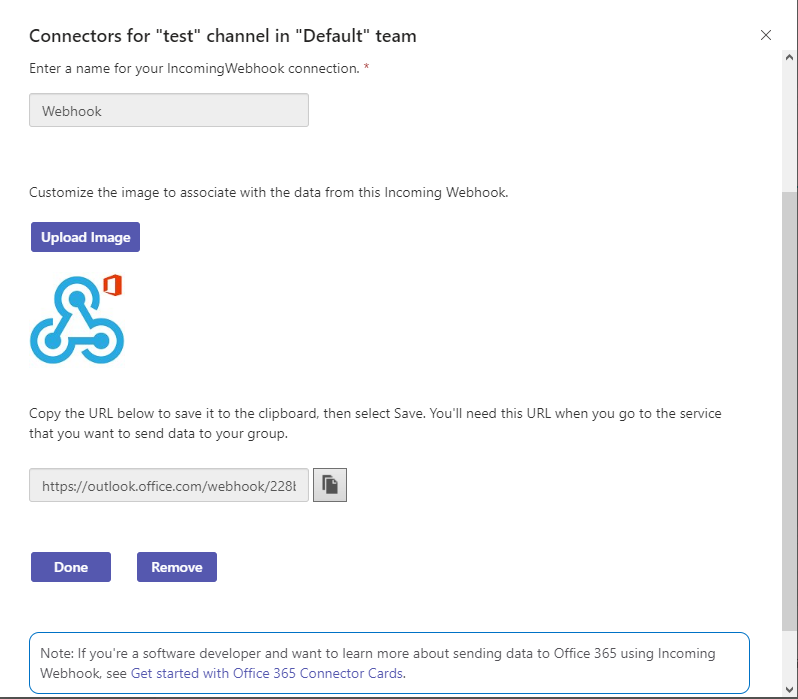

5. Then Webhook URL has been created. Copy the URL and click Done.

---
